IAUC120N04S6L008ATMA1
IAUC120N04S6L008ATMA1

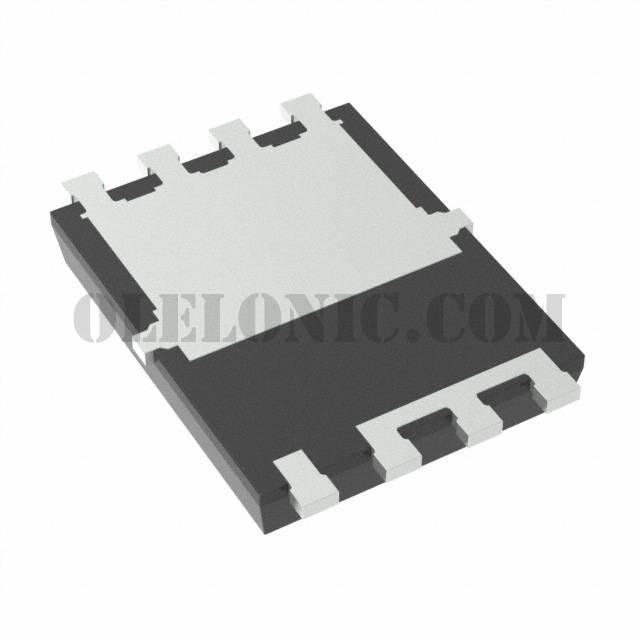

Part Number IAUC120N04S6L008ATMA1
Description MOSFET N-CH 40V 120A PG-HSOG-8
Package / Case 8-PowerTDFN
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description N-Channel 40V 120A (Tc) 150W (Tc) Surface Mount PG-TDSON-8-33
To learn about the specification of IAUC120N04S6L008ATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IAUC120N04S6L008ATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IAUC120N04S6L008ATMA1.
We are offering IAUC120N04S6L008ATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IAUC120N04S6L008ATMA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet IAUC120N04S6L008
Standard Package 5000
Manufacturer Infineon Technologies
Series Automotive, AEC-Q101, OptiMOS™
Packaging Tape & Reel (TR)
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40V
Current - Continuous Drain (Id) @ 25°C 120A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 0.8mOhm @ 60A, 10V
Vgs(th) (Max) @ Id 2V @ 90µA
Gate Charge (Qg) (Max) @ Vgs 140nC @ 10V
Vgs (Max) ±16V
Input Capacitance (Ciss) (Max) @ Vds 7910pF @ 25V
FET Feature -
Power Dissipation (Max) 150W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-TDSON-8-33
Package / Case 8-PowerTDFN
