HUF75345G3

HUF75345G3

Part NumberHUF75345G3

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 55V 75A TO-247

DatasheetHUF75345G3/P3/S3S

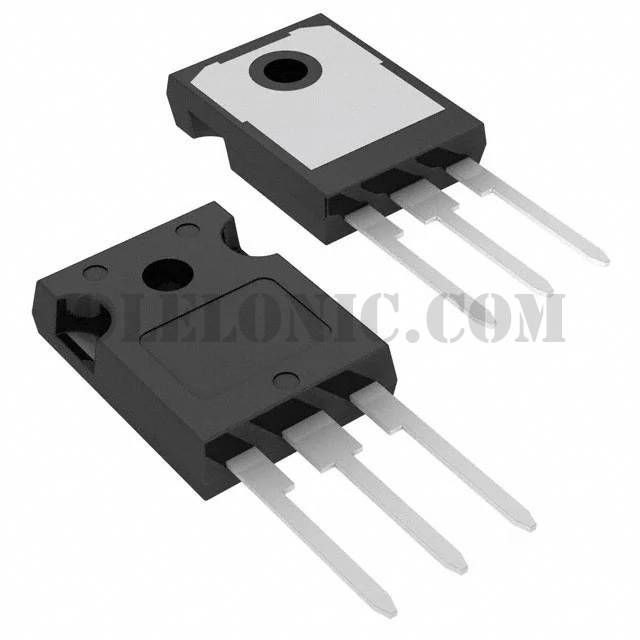

Package / CaseTO-247-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 55V 75A (Tc) 325W (Tc) Through Hole TO-247-3

To learn about the specification of HUF75345G3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HUF75345G3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HUF75345G3.
We are offering HUF75345G3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HUF75345G3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	HUF75345G3/P3/S3S
Standard Package	450
Manufacturer	ON Semiconductor
Series	UltraFET™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55V
Current - Continuous Drain (Id) @ 25°C	75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	7mOhm @ 75A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	275nC @ 20V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4000pF @ 25V
FET Feature	-
Power Dissipation (Max)	325W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-3
Package / Case	TO-247-3
