HTNFET-T
HTNFET-T

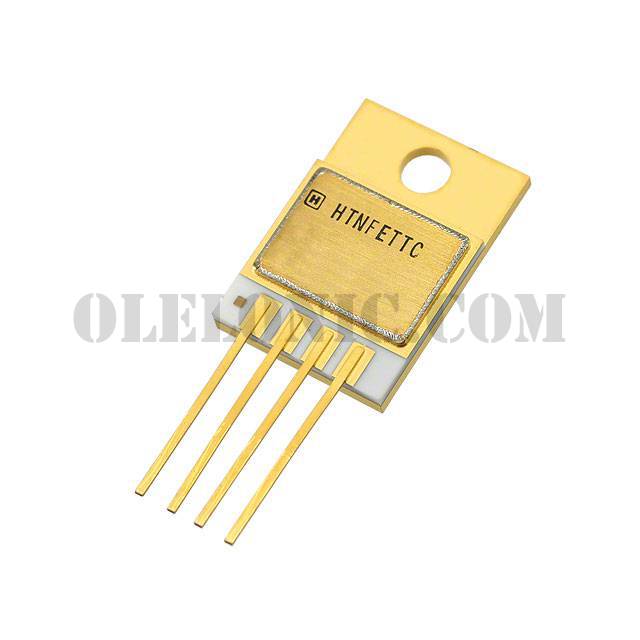

Part Number HTNFET-T
Description MOSFET N-CH 55V 4-PIN
Package / Case 4-SIP
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description N-Channel 55V 50W (Tj) Through Hole 4-Power Tab
To learn about the specification of HTNFET-T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HTNFET-T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HTNFET-T.
We are offering HTNFET-T for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
HTNFET-T - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet HTNFET Datasheet
Standard Package 1
Manufacturer Honeywell Aerospace
Series HTMOS™
Packaging Bulk
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 55V
Current - Continuous Drain (Id) @ 25°C -
Drive Voltage (Max Rds On, Min Rds On) 5V
Rds On (Max) @ Id, Vgs 400mOhm @ 100mA, 5V
Vgs(th) (Max) @ Id 2.4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs 4.3nC @ 5V
Vgs (Max) 10V
Input Capacitance (Ciss) (Max) @ Vds 290pF @ 28V
FET Feature -
Power Dissipation (Max) 50W (Tj)
Operating Temperature -55°C ~ 225°C (TJ)
Mounting Type Through Hole
Supplier Device Package 4-Power Tab
Package / Case 4-SIP
