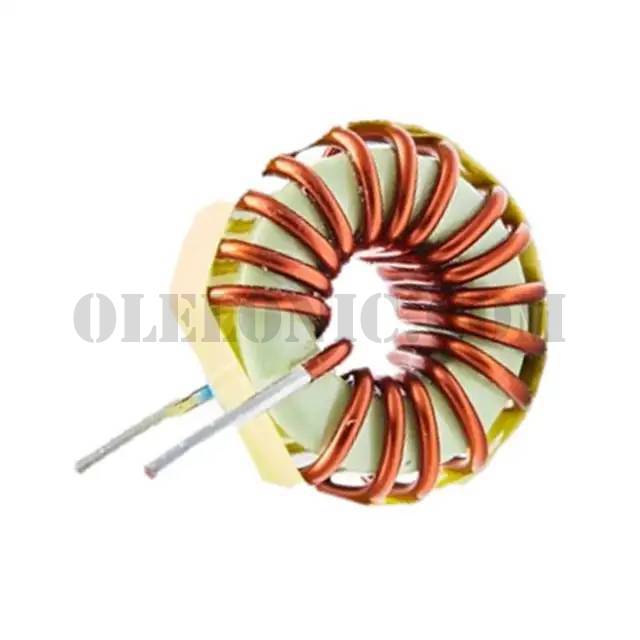

HCTI-120-6.7


HCTI-120-6.7

Part NumberHCTI-120-6.7

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

HCTI-120-6.7 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package47
ManufacturerSignal Transformer
SeriesHCTI
PackagingTray
Part StatusActive
TypeToroidal
Material - Core-
Inductance120µH
Tolerance±15%
Current Rating (Amps)6.7A
Current - Saturation-
ShieldingShielded
DC Resistance (DCR)40mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-55°C ~ 105°C
Inductance Frequency - Test1kHz
Features-
Mounting TypeThrough Hole
Package / CaseRadial, Vertical (Open)
Supplier Device Package-
Size / Dimension1.280" Dia x 0.650" W (32.51mm x 16.51mm)
Height - Seated (Max)-
