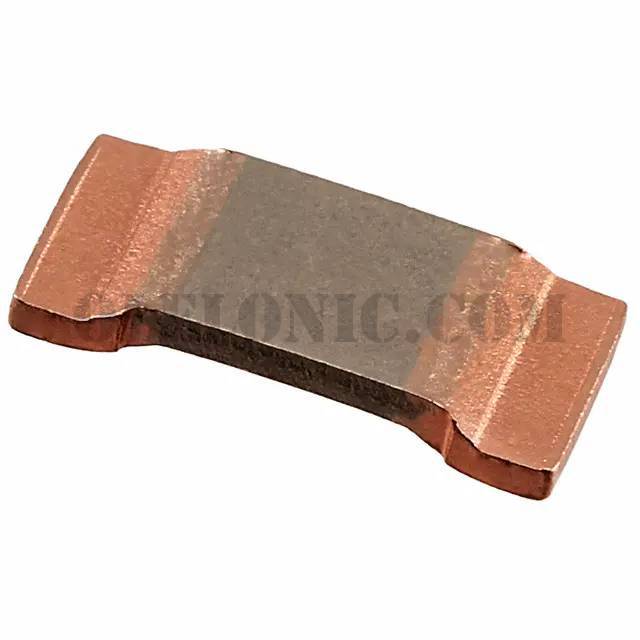

HCS3920FT1L00

Part NumberHCS3920FT1L00

ManufacturerStackpole Electronics Inc

DescriptionRES 0.001 OHM 1% 5W 3920

DatasheetHCS Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1 mOhms ±1% 5W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Foil

To learn about the specification of HCS3920FT1L00, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HCS3920FT1L00 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HCS3920FT1L00.
We are offering HCS3920FT1L00 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HCS3920FT1L00 - Product Attributes

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	HCS Series
Standard Package	3000
Manufacturer	Stackpole Electronics Inc
Series	HCS
Packaging	Tape & Reel (TR)
Part Status	Active
Resistance	1 mOhms
Tolerance	±1%
Power (Watts)	5W
Composition	Metal Foil
Features	Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient	±50ppm/°C
Operating Temperature	-55°C ~ 170°C
Package / Case	Nonstandard
Supplier Device Package	3920
Size / Dimension	0.402" L x 0.205" W (10.20mm x 5.20mm)
Height - Seated (Max)	0.022" (0.55mm)
Number of Terminations	2
Failure Rate	-
