HC9-2R2-R
HC9-2R2-R

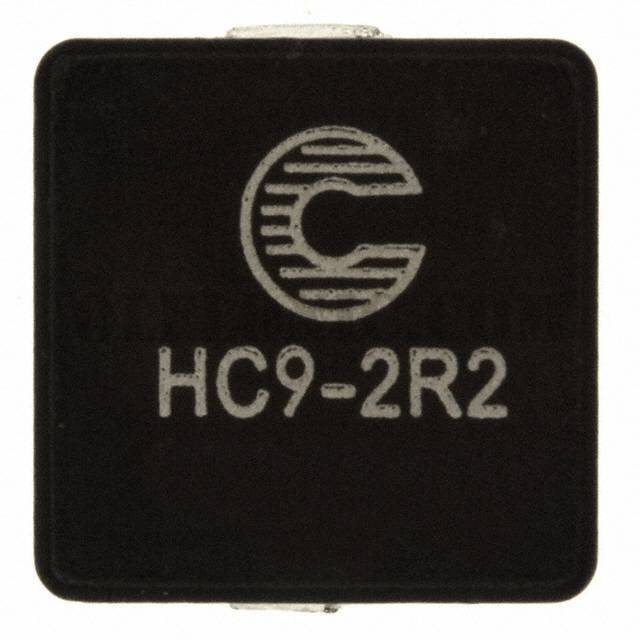

Part Number HC9-2R2-R Description FIXED IND 2.2UH 17.2A 3.37 MOHM Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2.2µH Unshielded Wirewound Inductor 17.2A 3.37mOhm Max Nonstandard
To learn about the specification of HC9-2R2-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HC9-2R2-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HC9-2R2-R.
We are offering HC9-2R2-R for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
HC9-2R2-R - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet HC9 Series Standard Package 450 Manufacturer Eaton - Electronics Division Series HC9 Packaging Tape & Reel (TR) Part Status Active Type Wirewound Material - Core Iron Powder Inductance 2.2µH Tolerance ±15% Current Rating (Amps) 17.2A Current - Saturation 26A Shielding Unshielded DC Resistance (DCR) 3.37mOhm Max Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -40°C ~ 155°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.555" L x 0.516" W (14.10mm x 13.10mm) Height - Seated (Max) 0.295" (7.50mm)
