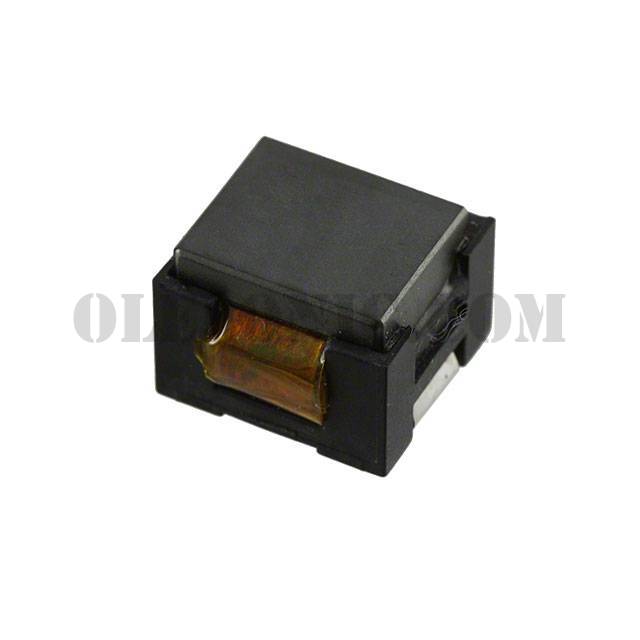

HC1-100-R

HC1-100-R

Part NumberHC1-100-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 10UH 12.79A 5.7 MOHM

DatasheetHC1 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10µH Unshielded Wirewound Inductor 12.79A 5.7mOhm Max Nonstandard

To learn about the specification of HC1-100-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HC1-100-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HC1-100-R.
We are offering HC1-100-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HC1-100-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	HC1 Series
Standard Package	1
Manufacturer	Eaton - Electronics Division
Series	HC1
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	10µH
Tolerance	±15%
Current Rating (Amps)	12.79A
Current - Saturation	5.3A
Shielding	Unshielded
DC Resistance (DCR)	5.7mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	300kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Max)	0.394" (10.00mm)
