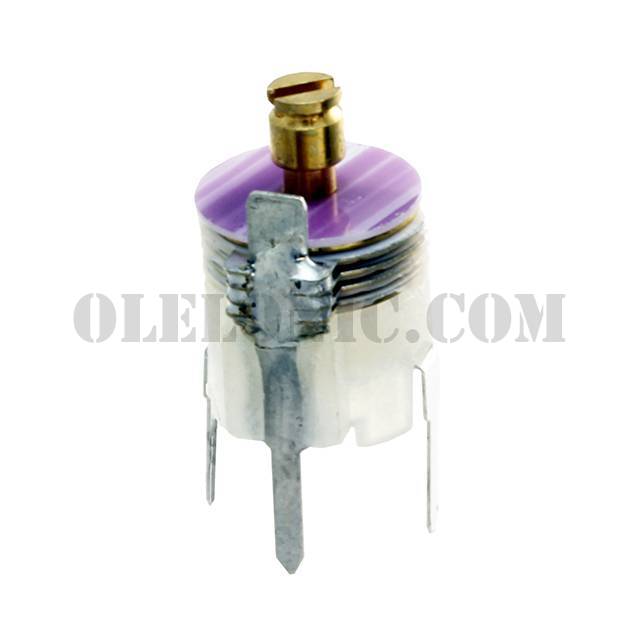

Categories	Capacitors / Trimmers, Variable Capacitors
Datasheet	GXEyy000NM Drawing*
Standard Package	100
Manufacturer	Sprague-Goodman
Series	GXE
Packaging	Bulk
Part Status	Active
Capacitance Range	4.5 ~ 36pF
Adjustment Type	Top and Bottom
Voltage - Rated	200V
Dielectric Material	Polytetrafluoroethylene (PTFE)
Q @ Freq	1500 @ 1MHz
Size / Dimension	0.335" Dia (8.50mm)
Height - Seated (Max)	0.449" (11.40mm)
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Features	Non-Magnetic

EGXE350ELL101MH12D	United Chemi-Con, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, GXE	View
EGXE100ELL221MH12D	United Chemi-Con, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, GXE	View
EGXE401ELL4R7MJ20S	United Chemi-Con, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, GXE	View
GXE9R000NM	Sprague-Goodman, 1.8 ~ 9pF Trimmer Capacitor 200V Top and Bottom Through Hole, GXE	View
EGXE251ELL220MK20S	United Chemi-Con, 22µF 250V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, GXE	View
EGXE451ELL220ML25S	United Chemi-Con, 22µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, GXE	View
EGXE350ELL470MH12D	United Chemi-Con, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, GXE	View
EGXE500ELL471MK25S	United Chemi-Con, 470µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, GXE	View
GXE5R000NM	Sprague-Goodman, 1.5 ~ 5pF Trimmer Capacitor 200V Top and Bottom Through Hole, GXE	View
EGXE630ELL102MLN3S	United Chemi-Con, 1000µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, GXE	View
EGXE101ELL330MJC5S	United Chemi-Con, 33µF 100V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 125°C, GXE	View
EGXE160ELL101MH12D	United Chemi-Con, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, GXE	View

GXE36000NM

Part NumberGXE36000NM
