Categories	Capacitors / Trimmers, Variable Capacitors
Datasheet	GC,GSX,GX,GY,GZ Series Datasheet
Standard Package	100
Manufacturer	Sprague-Goodman
Series	FILMTRIM®
Packaging	Bulk
Part Status	Active
Capacitance Range	2.5 ~ 18pF
Adjustment Type	Top and Bottom
Voltage - Rated	300V
Dielectric Material	Polytetrafluoroethylene (PTFE)
Q @ Freq	1500 @ 1MHz
Size / Dimension	0.291" L x 0.264" W (7.40mm x 6.70mm)
Height - Seated (Max)	0.315" (8.00mm)
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Features	General Purpose

GYA10000	Sprague-Goodman, 2 ~ 10pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GXD13000	Sprague-Goodman, 2 ~ 13pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View
GYA22000	Sprague-Goodman, 2.2 ~ 22pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYD65000	Sprague-Goodman, 4.5 ~ 65pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View
GYB15000	Sprague-Goodman, 2 ~ 15pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View
GZC10103	Sprague-Goodman, 9 ~ 100pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GXE3R501	Sprague-Goodman, 1 ~ 3.5pF Trimmer Capacitor 300V Top and Bottom Through Hole, FILMTRIM®	View
GXE18011	Sprague-Goodman, 2.5 ~ 18pF Trimmer Capacitor 300V Top and Bottom Through Hole, FILMTRIM®	View
GYB22000	Sprague-Goodman, 2.2 ~ 22pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View
GZC80000	Sprague-Goodman, 8 ~ 80pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GXE3R511	Sprague-Goodman, 1 ~ 3.5pF Trimmer Capacitor 300V Top and Bottom Through Hole, FILMTRIM®	View
GYA27002	Sprague-Goodman, 2.3 ~ 27pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View

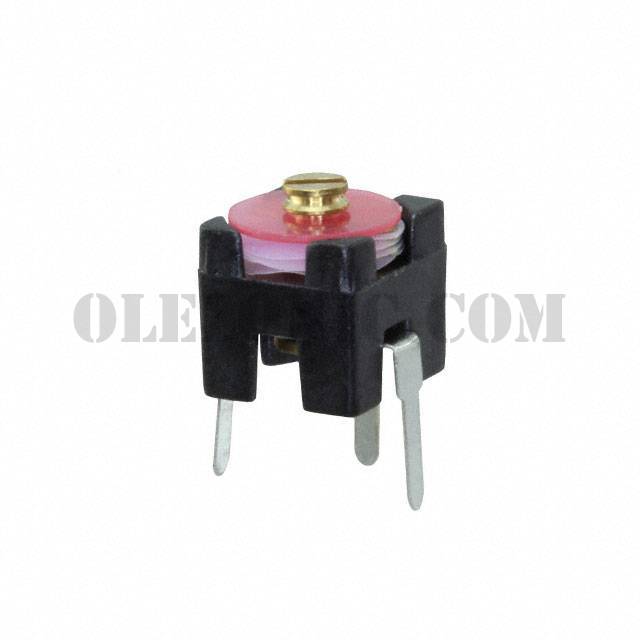

GXE18011

Part NumberGXE18011
