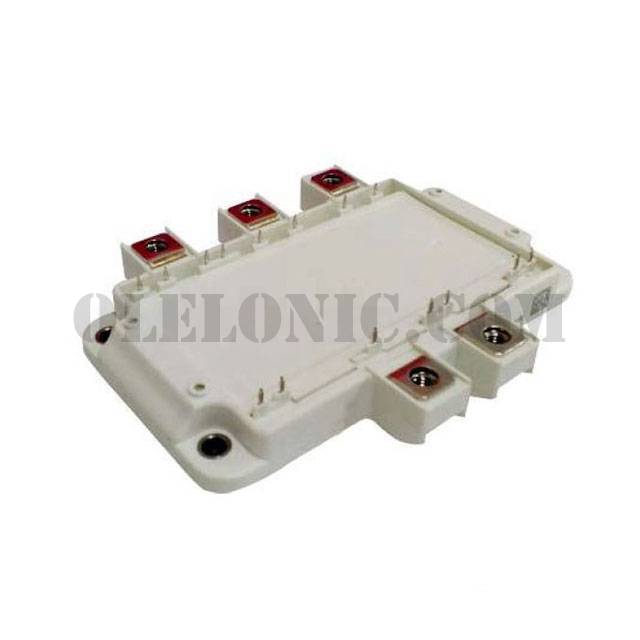

GSID200A120S5C1

GSID200A120S5C1

Part NumberGSID200A120S5C1

ManufacturerGlobal Power Technologies Group

DescriptionIGBT MODULE 1200V 335A

DatasheetGSID200A120S5C1 Preliminary

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Three Phase Inverter 1200V 335A Chassis Mount Module

To learn about the specification of GSID200A120S5C1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add GSID200A120S5C1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of GSID200A120S5C1.
We are offering GSID200A120S5C1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

GSID200A120S5C1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet	GSID200A120S5C1 Preliminary
Standard Package	2
Manufacturer	Global Power Technologies Group
Series	-
Part Status	Active
IGBT Type	-
Configuration	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	335A
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 200A
Current - Collector Cutoff (Max)	1mA
Input Capacitance (Cies) @ Vce	22.4nF @ 25V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
