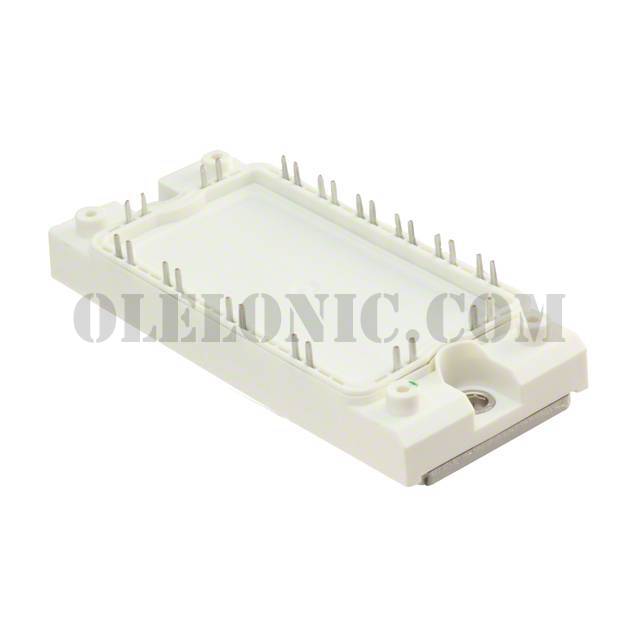

FS75R12KE3BOSA1

FS75R12KE3BOSA1

Part NumberFS75R12KE3BOSA1

ManufacturerInfineon Technologies

DescriptionIGBT MODULE 1200V 75A

DatasheetFS75R12KE3

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Three Phase Inverter 1200V 105A 350W Chassis Mount Module

To learn about the specification of FS75R12KE3BOSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FS75R12KE3BOSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FS75R12KE3BOSA1.
We are offering FS75R12KE3BOSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FS75R12KE3BOSA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet	FS75R12KE3
Standard Package	10
Manufacturer	Infineon Technologies
Series	-
Part Status	Active
IGBT Type	NPT
Configuration	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	105A
Power - Max	350W
Vce(on) (Max) @ Vge, Ic	2.15V @ 15V, 75A
Current - Collector Cutoff (Max)	5mA
Input Capacitance (Cies) @ Vce	5.3nF @ 25V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
