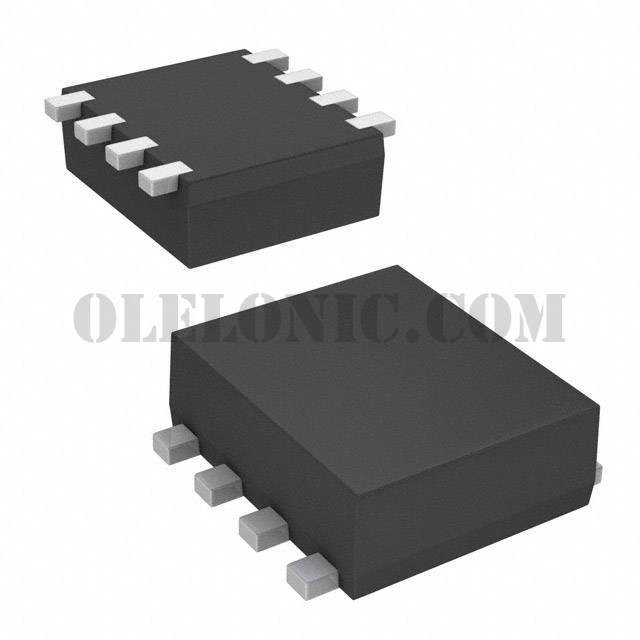

FK8V03050L

FK8V03050L

Part NumberFK8V03050L

ManufacturerPanasonic Electronic Components

DescriptionMOSFET N CH 33V 8A WMINI8-F1

DatasheetFK8V03050L

Package / Case8-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 33V 8A (Ta) 1W (Ta) Surface Mount WMini8-F1

To learn about the specification of FK8V03050L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FK8V03050L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FK8V03050L.
We are offering FK8V03050L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FK8V03050L - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FK8V03050L
Standard Package	3000
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	33V
Current - Continuous Drain (Id) @ 25°C	8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	15mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2.5V @ 730µA
Gate Charge (Qg) (Max) @ Vgs	5.1nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	520pF @ 10V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	WMini8-F1
Package / Case	8-SMD, Flat Lead
