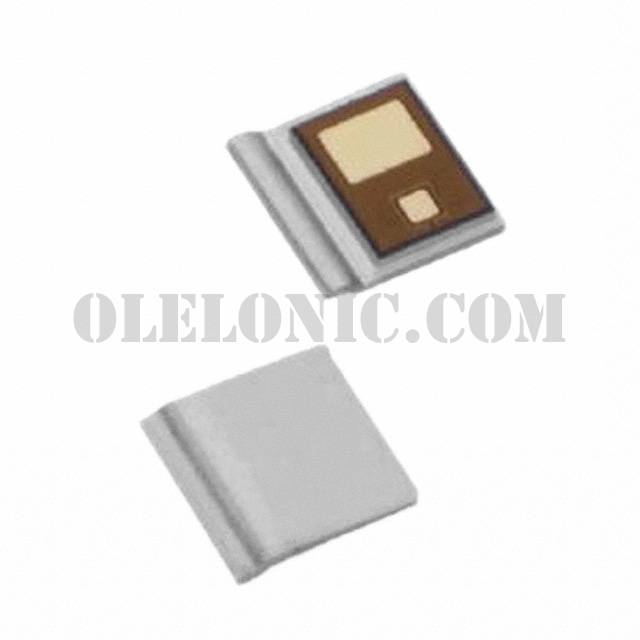

FK3P02110L


FK3P02110L

Part NumberFK3P02110L

Manufacturer

Description

Datasheet

Package / Case3-SMD, Non-Standard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

FK3P02110L - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package1
ManufacturerPanasonic Electronic Components
Series-
PackagingCut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)24V
Current - Continuous Drain (Id) @ 25°C3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V
Rds On (Max) @ Id, Vgs20mOhm @ 3A, 2.5V
Vgs(th) (Max) @ Id1.4V @ 1mA
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1500pF @ 10V
FET Feature-
Power Dissipation (Max)-
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package3-PMCP
Package / Case3-SMD, Non-Standard
