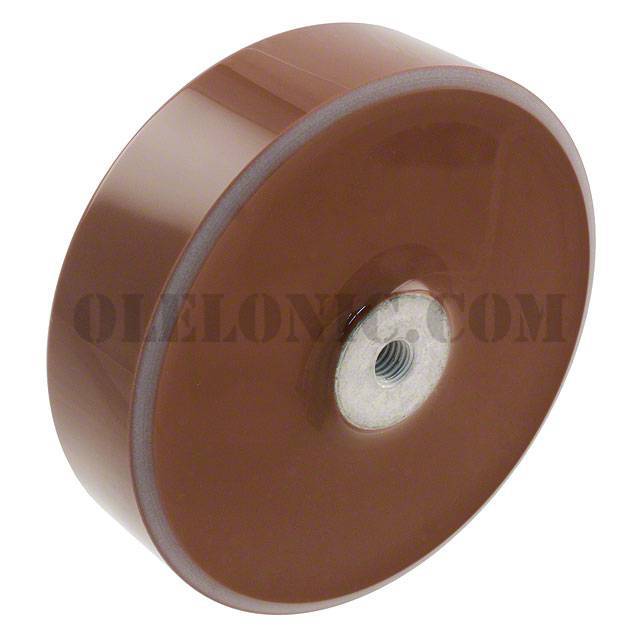

FHV-153AN

Part NumberFHV-153AN

ManufacturerTDK Corporation

DescriptionCAP CER 7000PF 15KV Y5S DISK

DatasheetFHV Series

Package / CaseDisk, Metal Fitting - Threaded

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description7000pF ±10% 15000V (15kV) Ceramic Capacitor Y5S Disk, Metal Fitting - Threaded

To learn about the specification of FHV-153AN, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FHV-153AN with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FHV-153AN.
We are offering FHV-153AN for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FHV-153AN - Product Attributes

FHV-153AN - Related Products

More >>

FHV-2AN

TDK Corporation, 3000pF ±10% 20000V (20kV) Ceramic Capacitor Y5S Disk, Metal Fitting - Threaded, FHV

View

FHV-12AN

TDK Corporation, 2100pF ±10% 50000V (50kV) Ceramic Capacitor Y5S Disk, Metal Fitting - Threaded, FHV

View

FHV-9AN

TDK Corporation, 2600pF ±10% 40000V (40kV) Ceramic Capacitor Y5S Disk, Metal Fitting - Threaded, FHV

View

FHV-3AN

TDK Corporation, 5200pF ±10% 20000V (20kV) Ceramic Capacitor Y5S Disk, Metal Fitting - Threaded, FHV

View

FHV-7AN

TDK Corporation, 850pF ±10% 40000V (40kV) Ceramic Capacitor Y5S Disk, Metal Fitting - Threaded, FHV

View

FHV-10AN

TDK Corporation, 700pF ±10% 50000V (50kV) Ceramic Capacitor Y5S Disk, Metal Fitting - Threaded, FHV

View

FHV-6AN

TDK Corporation, 3500pF ±10% 30000V (30kV) Ceramic Capacitor Y5S Disk, Metal Fitting - Threaded, FHV

View

FHV-153AN

TDK Corporation, 7000pF ±10% 15000V (15kV) Ceramic Capacitor Y5S Disk, Metal Fitting - Threaded, FHV

View

FHV-1AN

TDK Corporation, 1700pF ±10% 20000V (20kV) Ceramic Capacitor Y5S Disk, Metal Fitting - Threaded, FHV

View

FHV-8AN

TDK Corporation, 1500pF ±10% 40000V (40kV) Ceramic Capacitor Y5S Disk, Metal Fitting - Threaded, FHV

View

FHV-4AN

TDK Corporation, 1200pF ±10% 30000V (30kV) Ceramic Capacitor Y5S Disk, Metal Fitting - Threaded, FHV

View

FHV-5AN

TDK Corporation, 2100pF ±10% 30000V (30kV) Ceramic Capacitor Y5S Disk, Metal Fitting - Threaded, FHV

View

Categories	Capacitors / Ceramic Capacitors
Datasheet	FHV Series
Standard Package	1
Manufacturer	TDK Corporation
Series	FHV
Packaging	Bulk
Part Status	Active
Capacitance	7000pF
Tolerance	±10%
Voltage - Rated	15000V (15kV)
Temperature Coefficient	Y5S
Operating Temperature	-30°C ~ 85°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Requires Holder
Package / Case	Disk, Metal Fitting - Threaded
Size / Dimension	2.362" Dia x 0.807" L (60.00mm x 20.50mm)
Height - Seated (Max)	-
Thickness (Max)	-
Lead Spacing	-
Lead Style	-
