FGAF40S65AQ
FGAF40S65AQ

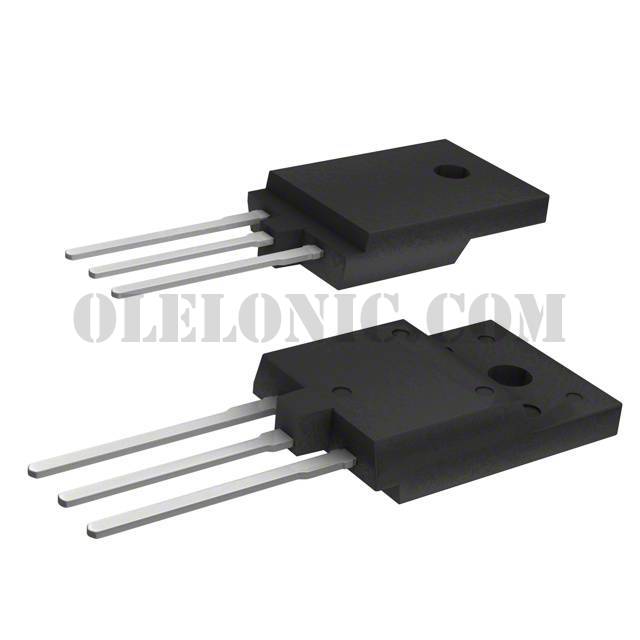

Part Number FGAF40S65AQ Description 650V 40A FS4 SA IGBT Package / Case TO-3P-3 Full PackUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Trench Field Stop 650V 80A 94W Through Hole TO-3PF-3
To learn about the specification of FGAF40S65AQ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FGAF40S65AQ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FGAF40S65AQ.
We are offering FGAF40S65AQ for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
FGAF40S65AQ - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet FGAF40S65AQ Standard Package 30 Manufacturer ON Semiconductor Series - Part Status Active IGBT Type Trench Field Stop Voltage - Collector Emitter Breakdown (Max) 650V Current - Collector (Ic) (Max) 80A Current - Collector Pulsed (Icm) 160A Vce(on) (Max) @ Vge, Ic 2.1V @ 15V, 40A Power - Max 94W Switching Energy 132µJ (on), 62µJ (off) Input Type Standard Gate Charge 75nC Td (on/off) @ 25°C 17.8ns/81.6ns Test Condition 400V, 10A, 6Ohm, 15V Reverse Recovery Time (trr) 274ns Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-3P-3 Full Pack Supplier Device Package TO-3PF-3
