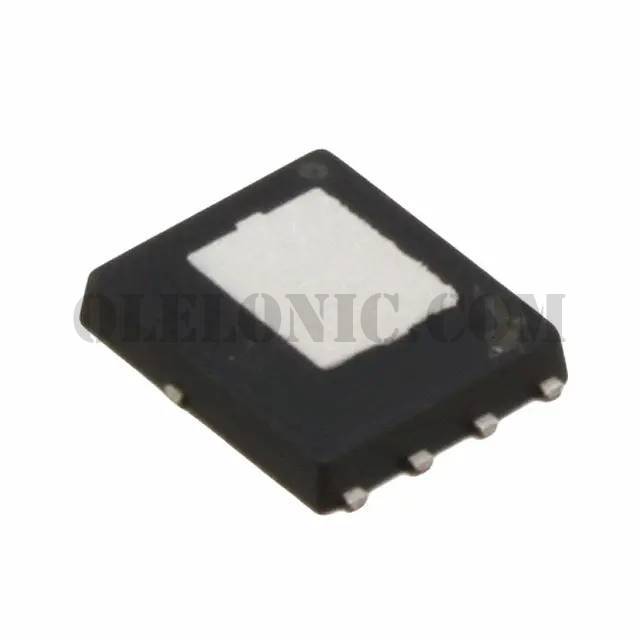

FDMS86500DC

FDMS86500DC

Part NumberFDMS86500DC

ManufacturerON Semiconductor

DescriptionMOSFET N CH 60V 29A 8-PQFN

DatasheetFDMS86500DC

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 29A (Ta), 108A (Tc) 3.2W (Ta), 125W (Tc) Surface Mount Dual Cool™56

To learn about the specification of FDMS86500DC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMS86500DC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMS86500DC.
We are offering FDMS86500DC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMS86500DC - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMS86500DC
Standard Package	1
Manufacturer	ON Semiconductor
Series	Dual Cool™, PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	29A (Ta), 108A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	8V, 10V
Rds On (Max) @ Id, Vgs	2.3mOhm @ 29A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	107nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7680pF @ 30V
FET Feature	-
Power Dissipation (Max)	3.2W (Ta), 125W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Dual Cool™56
Package / Case	8-PowerTDFN
