FDI150N10


FDI150N10

Part NumberFDI150N10

Manufacturer

Description

Datasheet

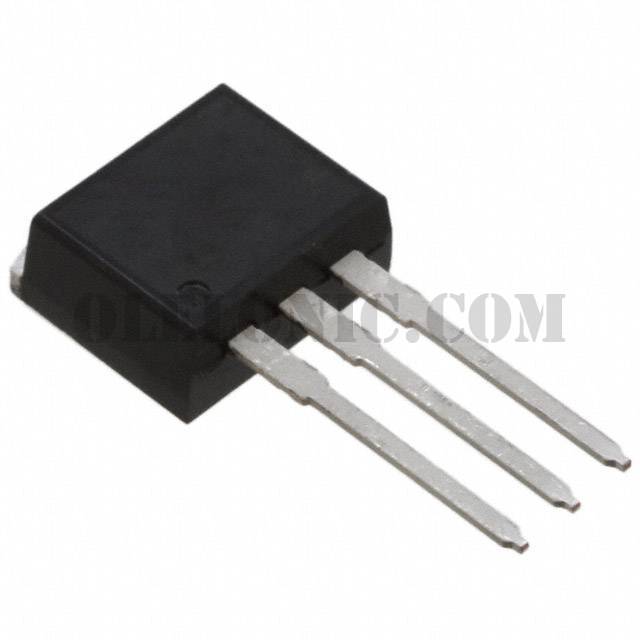

Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

FDI150N10 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package800
ManufacturerON Semiconductor
SeriesPowerTrench®
PackagingTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100V
Current - Continuous Drain (Id) @ 25°C57A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs16mOhm @ 49A, 10V
Vgs(th) (Max) @ Id4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs69nC @ 10V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4760pF @ 25V
FET Feature-
Power Dissipation (Max)110W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI2PAK (TO-262)
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
