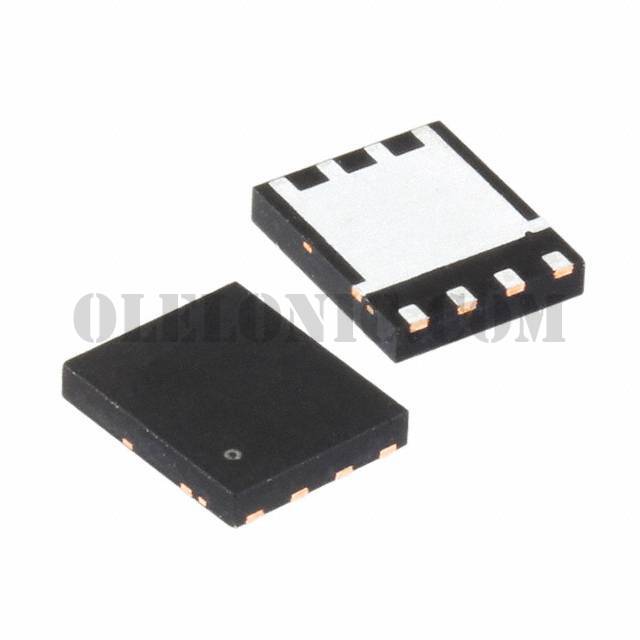

FDMS86255

FDMS86255

Part NumberFDMS86255

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 150V 8-MLP

DatasheetFDMS86255

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 150V 10A (Ta), 45A (Tc) 2.7W (Ta), 113W (Tc) Surface Mount Power56

To learn about the specification of FDMS86255, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMS86255 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMS86255.
We are offering FDMS86255 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMS86255 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMS86255
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150V
Current - Continuous Drain (Id) @ 25°C	10A (Ta), 45A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	12.4mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	63nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4480pF @ 75V
FET Feature	-
Power Dissipation (Max)	2.7W (Ta), 113W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Power56
Package / Case	8-PowerTDFN
