FDMS86180

FDMS86180

Part NumberFDMS86180

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 100V 151A 8PQFN

DatasheetFDMS86180

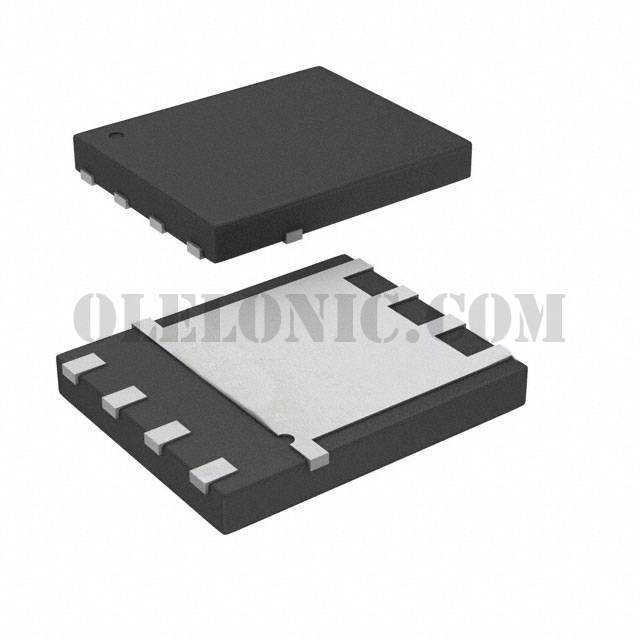

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 151A (Tc) 138W (Tc) Surface Mount Power56

To learn about the specification of FDMS86180, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMS86180 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMS86180.
We are offering FDMS86180 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMS86180 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMS86180
Standard Package	1
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	151A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	3.2mOhm @ 67A, 10V
Vgs(th) (Max) @ Id	4V @ 370µA
Gate Charge (Qg) (Max) @ Vgs	54nC @ 6V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6215pF @ 50V
FET Feature	-
Power Dissipation (Max)	138W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Power56
Package / Case	8-PowerTDFN
