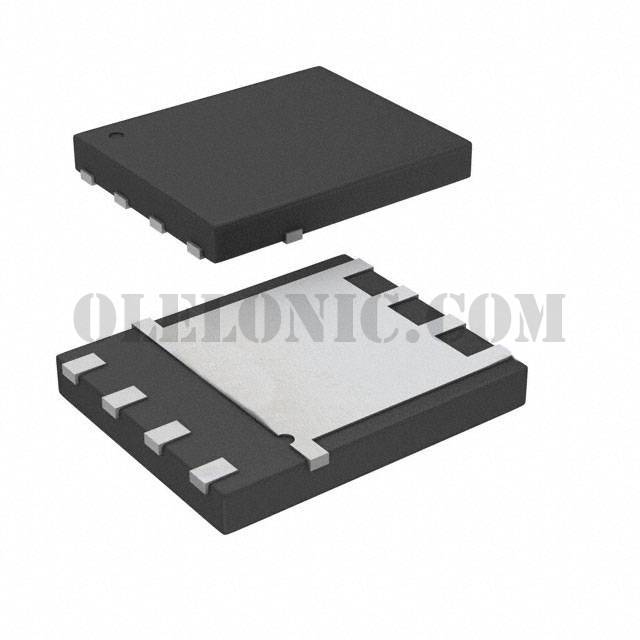

FDMS8350L

Part NumberFDMS8350L

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 40V 47A 8PQFN

DatasheetFDMS8350L

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 47A (Ta), 200A (Tc) 2.7W (Ta), 113W (Tc) Surface Mount Power56

To learn about the specification of FDMS8350L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMS8350L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMS8350L.
We are offering FDMS8350L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMS8350L - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMS8350L
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	47A (Ta), 200A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	0.85mOhm @ 47A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	242nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	17500pF @ 20V
FET Feature	-
Power Dissipation (Max)	2.7W (Ta), 113W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Power56
Package / Case	8-PowerTDFN
