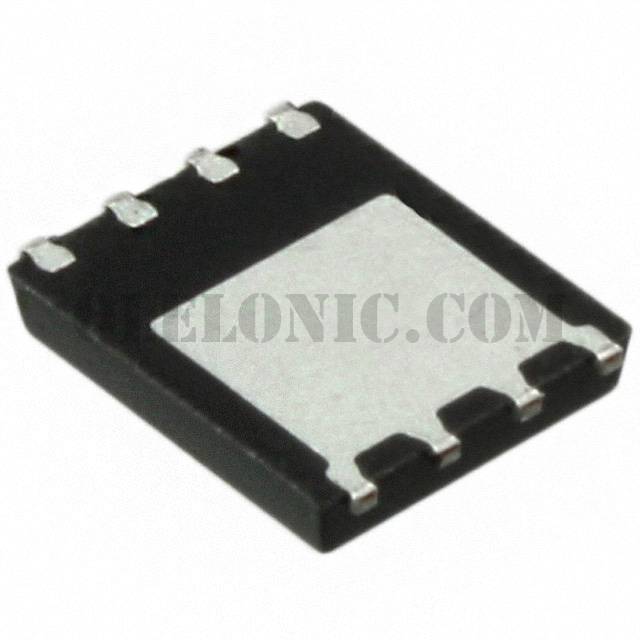

FDMC86184

FDMC86184

Part NumberFDMC86184

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 100V 57A 8PQFN

DatasheetFDMC86184

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 57A (Tc) 54W (Tc) Surface Mount 8-PQFN (3.3x3.3)

To learn about the specification of FDMC86184, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMC86184 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMC86184.
We are offering FDMC86184 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMC86184 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMC86184
Standard Package	1
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	57A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	8.5mOhm @ 21A, 10V
Vgs(th) (Max) @ Id	4V @ 110µA
Gate Charge (Qg) (Max) @ Vgs	20nC @ 6V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2090pF @ 50V
FET Feature	-
Power Dissipation (Max)	54W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (3.3x3.3)
Package / Case	8-PowerWDFN
