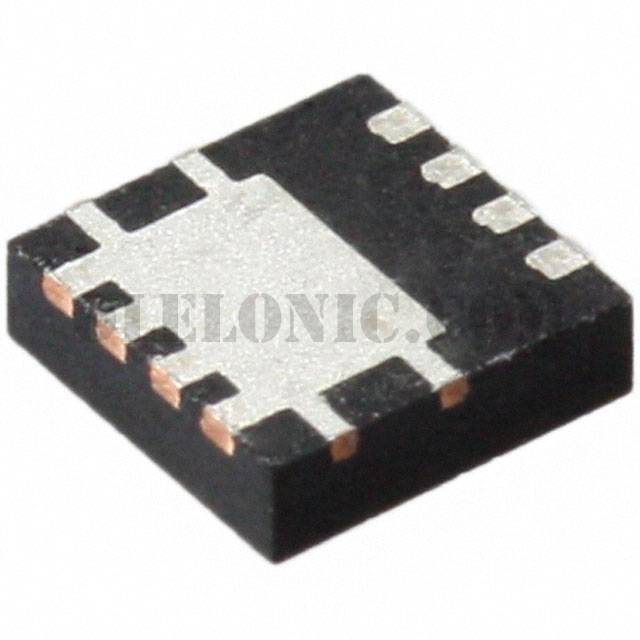

FDMC2514SDC

FDMC2514SDC

Part NumberFDMC2514SDC

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 25V 40A POWER33

DatasheetFDMC2514SDC

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 25V 24A (Ta), 40A (Tc) 3W (Ta), 60W (Tc) Surface Mount Dual Cool ™ 33

To learn about the specification of FDMC2514SDC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMC2514SDC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMC2514SDC.
We are offering FDMC2514SDC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMC2514SDC - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMC2514SDC
Standard Package	1
Manufacturer	ON Semiconductor
Series	Dual Cool™, PowerTrench®, SyncFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	24A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.5mOhm @ 22.5A, 10V
Vgs(th) (Max) @ Id	3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	44nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2705pF @ 13V
FET Feature	-
Power Dissipation (Max)	3W (Ta), 60W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Dual Cool ™ 33
Package / Case	8-PowerTDFN
