FDMC007N08LCDC

FDMC007N08LCDC

Part NumberFDMC007N08LCDC

ManufacturerON Semiconductor

DescriptionFET 80V 7.0 MOHM PQFN33

DatasheetFDMC007N08LCDC

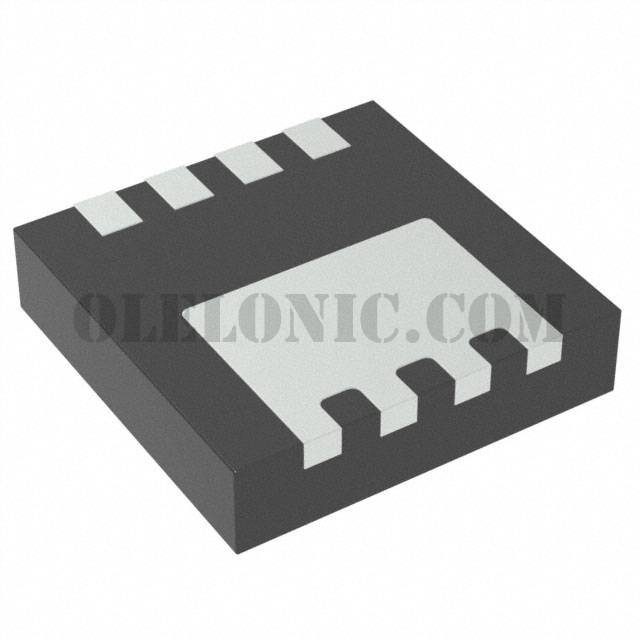

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 80V 64A (Tc) 57W (Tc) Surface Mount 8-PQFN (3.3x3.3)

To learn about the specification of FDMC007N08LCDC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMC007N08LCDC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMC007N08LCDC.
We are offering FDMC007N08LCDC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMC007N08LCDC - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMC007N08LCDC
Standard Package	1
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80V
Current - Continuous Drain (Id) @ 25°C	64A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.8mOhm @ 22A, 10V
Vgs(th) (Max) @ Id	2.5V @ 130µA
Gate Charge (Qg) (Max) @ Vgs	44nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3070pF @ 40V
FET Feature	-
Power Dissipation (Max)	57W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (3.3x3.3)
Package / Case	8-PowerWDFN
