FDMB2307NZ

FDMB2307NZ

Part NumberFDMB2307NZ

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 6-MLP

DatasheetFDMB2307NZ

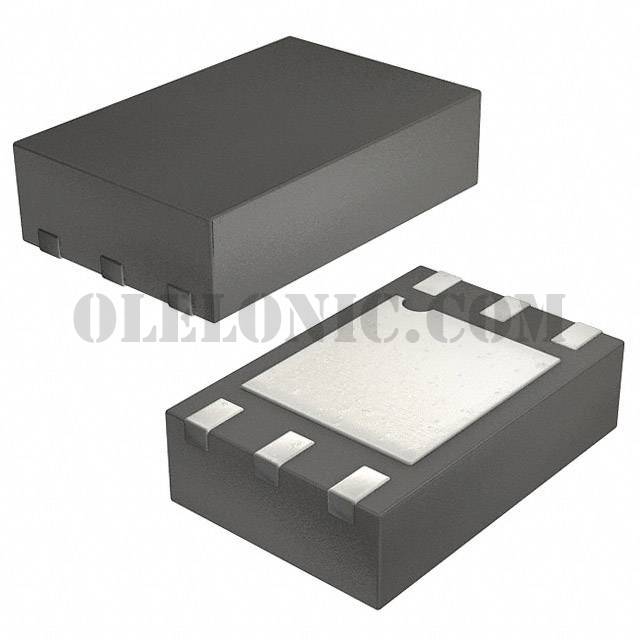

Package / Case6-WDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Drain 800mW Surface Mount 6-MLP (2x3)

To learn about the specification of FDMB2307NZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMB2307NZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMB2307NZ.
We are offering FDMB2307NZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMB2307NZ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDMB2307NZ
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	-
Current - Continuous Drain (Id) @ 25°C	-
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	28nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	800mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-WDFN Exposed Pad
Supplier Device Package	6-MLP (2x3)
Base Part Number	FDMB2307
