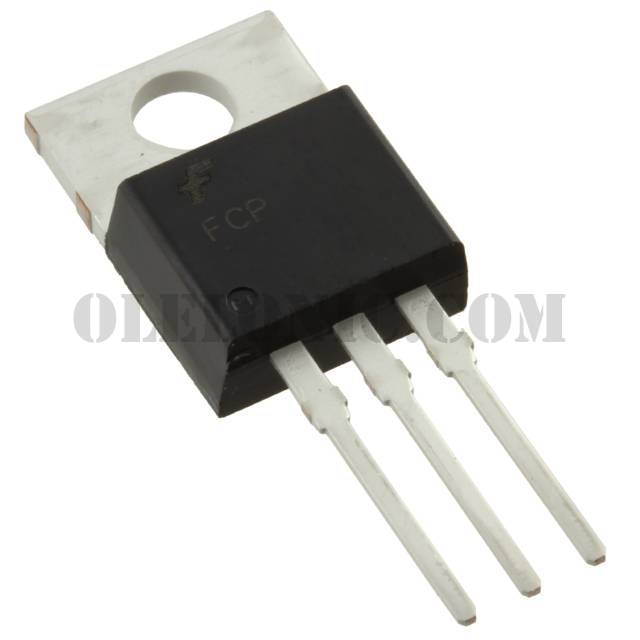

FCP110N65F

FCP110N65F

Part NumberFCP110N65F

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 650V 35A TO220

DatasheetFCP110N65F

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 650V 35A (Tc) 357W (Tc) Through Hole TO-220-3

To learn about the specification of FCP110N65F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FCP110N65F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FCP110N65F.
We are offering FCP110N65F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FCP110N65F - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FCP110N65F
Standard Package	800
Manufacturer	ON Semiconductor
Series	FRFET®, SuperFET® II
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650V
Current - Continuous Drain (Id) @ 25°C	35A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	110mOhm @ 17.5A, 10V
Vgs(th) (Max) @ Id	5V @ 3.5mA
Gate Charge (Qg) (Max) @ Vgs	145nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4895pF @ 100V
FET Feature	-
Power Dissipation (Max)	357W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3
