FC4B22270L1

Part NumberFC4B22270L1

ManufacturerPanasonic Electronic Components

DescriptionMOSFET 2 N-CHANNEL 4SMD

DatasheetFC4B22270L1 Datasheet~

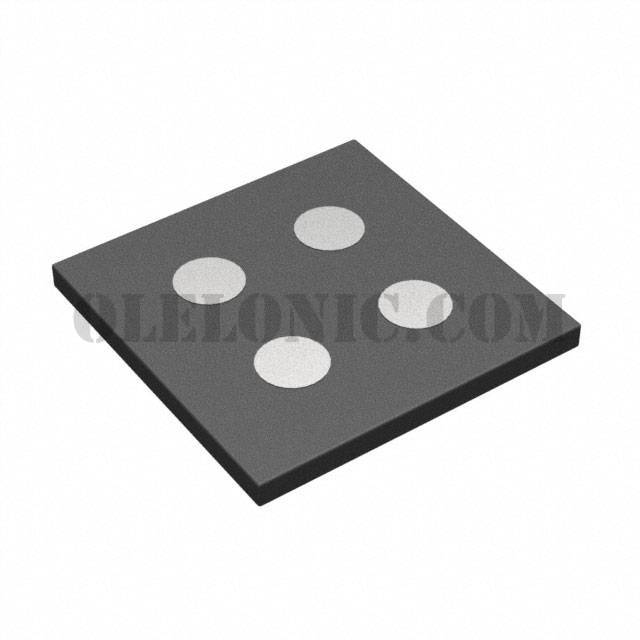

Package / Case4-XFLGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 1.5W (Ta) Surface Mount ULGA004-W-1313-RA

To learn about the specification of FC4B22270L1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FC4B22270L1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FC4B22270L1.
We are offering FC4B22270L1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FC4B22270L1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FC4B22270L1 Datasheet~
Standard Package	1000
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	-
Current - Continuous Drain (Id) @ 25°C	-
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	1.4V @ 310µA
Gate Charge (Qg) (Max) @ Vgs	9nC @ 4V
Input Capacitance (Ciss) (Max) @ Vds	910pF @ 10V
Power - Max	1.5W (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Package / Case	4-XFLGA
Supplier Device Package	ULGA004-W-1313-RA
