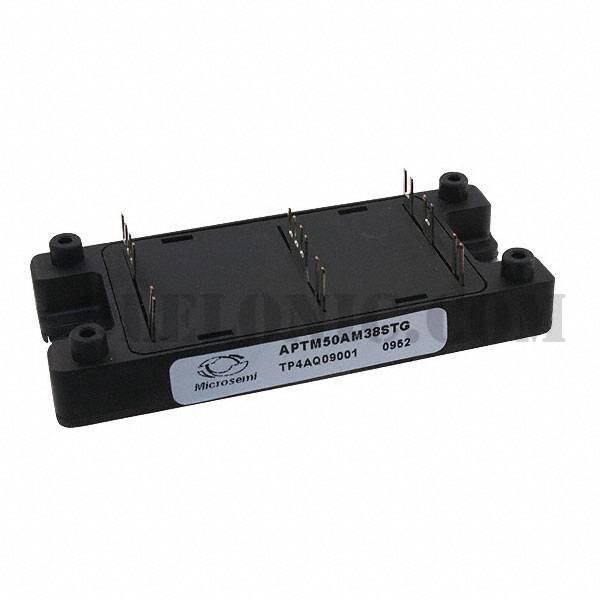

APTM50AM38STG

Part NumberAPTM50AM38STG

ManufacturerMicrosemi Corporation

DescriptionMOSFET 2N-CH 500V 90A SP4

DatasheetAPTM50AM38STG

Package / CaseSP4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 500V 90A 694W Chassis Mount SP4

To learn about the specification of APTM50AM38STG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM50AM38STG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM50AM38STG.
We are offering APTM50AM38STG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM50AM38STG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	APTM50AM38STG
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	90A
Rds On (Max) @ Id, Vgs	45mOhm @ 45A, 10V
Vgs(th) (Max) @ Id	5V @ 5mA
Gate Charge (Qg) (Max) @ Vgs	246nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	11200pF @ 25V
Power - Max	694W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP4
Supplier Device Package	SP4
