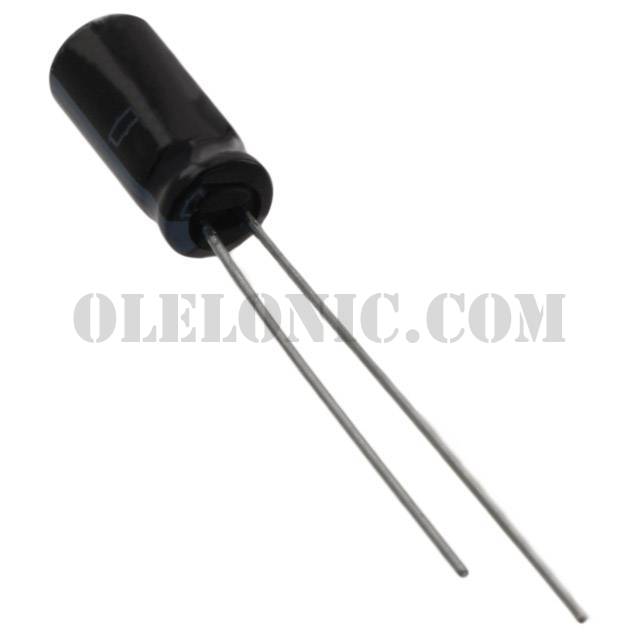

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	SMG Series
Standard Package	3000
Manufacturer	United Chemi-Con
Series	SMG
Packaging	Bulk
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	95mA @ 120Hz
Ripple Current @ High Frequency	171mA @ 100kHz
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

ESMG161ELL101MK25S	United Chemi-Con, 100µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG350ELL332MN25S	United Chemi-Con, 3300µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG500ELL1R0ME11D	United Chemi-Con, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG100ELL221ME11D	United Chemi-Con, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG350ELL470ME11D	United Chemi-Con, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG250ELL470ME11D	United Chemi-Con, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG201ELL561MP40S	United Chemi-Con, 560µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG250ELL332ML25S	United Chemi-Con, 3300µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG500ELL331MJ16S	United Chemi-Con, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG451ELL470MN25S	United Chemi-Con, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG500ELL4R7ME11D	United Chemi-Con, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG250ELL221MHB5D	United Chemi-Con, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View

ESMG500ELL220ME11D

Part NumberESMG500ELL220ME11D
