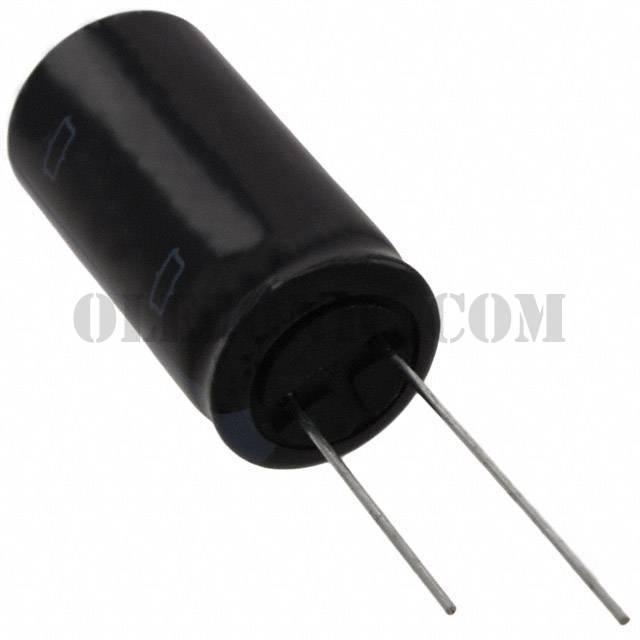

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	SMG Series
Standard Package	250
Manufacturer	United Chemi-Con
Series	SMG
Packaging	Bulk
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	160V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	995mA @ 120Hz
Ripple Current @ High Frequency	1.4925A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

ESMG500ELL472MP40S	United Chemi-Con, 4700µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG101ELL331MK25S	United Chemi-Con, 330µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG250ELL472MN25S	United Chemi-Con, 4700µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG201ELL271MN30S	United Chemi-Con, 270µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG630ELL331MJ20S	United Chemi-Con, 330µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG100ELL471MF11D	United Chemi-Con, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG630ELL471MK20S	United Chemi-Con, 470µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG451ELL220ML25S	United Chemi-Con, 22µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG351ELL470ML25S	United Chemi-Con, 47µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG350ELL101MF11D	United Chemi-Con, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG250ELL331MHB5D	United Chemi-Con, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG250ELL101MF11D	United Chemi-Con, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View

ESMG161ELL331MMP1S

Part NumberESMG161ELL331MMP1S
