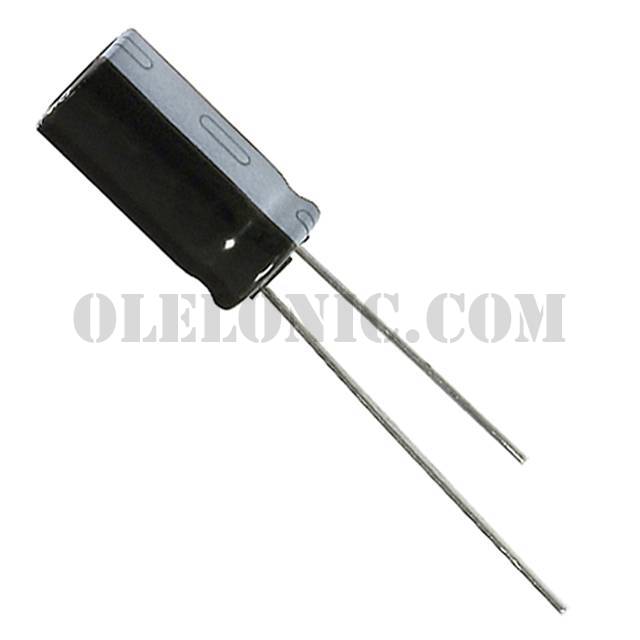

ESMG101ELL101MJ20S


ESMG101ELL101MJ20S

Part NumberESMG101ELL101MJ20S

Manufacturer

Description

Datasheet

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

ESMG101ELL101MJ20S - Product Attributes

Categories Capacitors / Aluminum Electrolytic Capacitors
Datasheet
Standard Package2000
ManufacturerUnited Chemi-Con
SeriesSMG
PackagingBulk
Part StatusActive
Capacitance100µF
Tolerance±20%
Voltage - Rated100V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.2000 Hrs @ 85°C
Operating Temperature-40°C ~ 85°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency370mA @ 120Hz
Ripple Current @ High Frequency555mA @ 100kHz
Lead Spacing0.197" (5.00mm)
Size / Dimension0.394" Dia (10.00mm)
Height - Seated (Max)0.846" (21.50mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can
