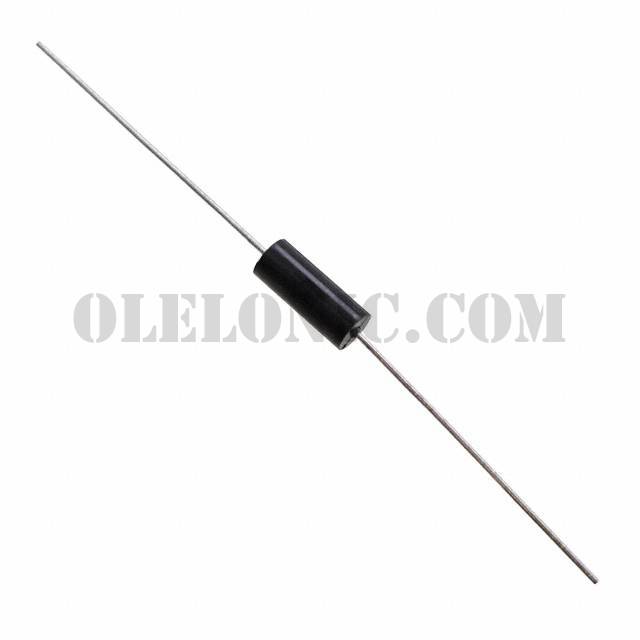

ER1641-181JS

ER1641-181JS

Part NumberER1641-181JS

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 180NH 1.3A 47 MOHM TH

DatasheetER Series (MIL-PRF-39010)

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description180nH Unshielded Inductor 1.3A 47mOhm Max Axial

To learn about the specification of ER1641-181JS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ER1641-181JS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ER1641-181JS.
We are offering ER1641-181JS for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ER1641-181JS - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	ER Series (MIL-PRF-39010)
Standard Package	250
Manufacturer	API Delevan Inc.
Series	Military, MIL-PRF-39010/01, ER1641
Packaging	Tape & Reel (TR)
Part Status	Active
Type	-
Material - Core	Phenolic
Inductance	180nH
Tolerance	±5%
Current Rating (Amps)	1.3A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	47mOhm Max
Q @ Freq	50 @ 25MHz
Frequency - Self Resonant	250MHz
Ratings	-
Operating Temperature	-55°C ~ 105°C
Inductance Frequency - Test	25MHz
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max)	-
