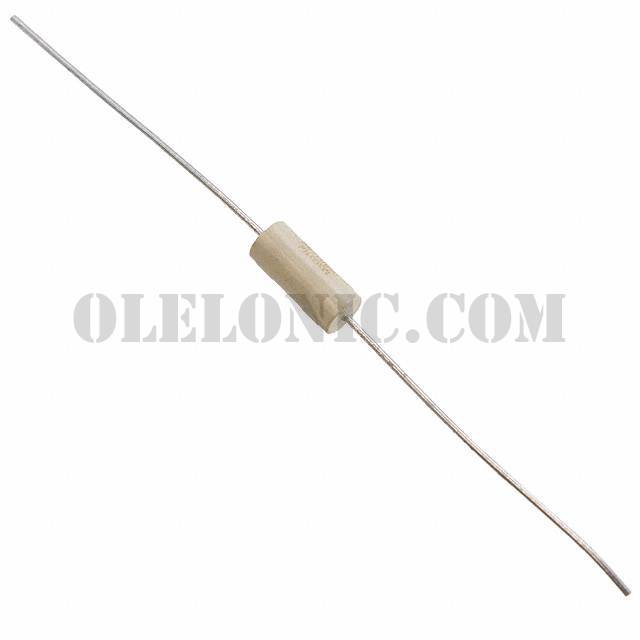

ER1537-12KR

ER1537-12KR

Part NumberER1537-12KR

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 1UH 785MA 290 MOHM TH

DatasheetER Series (MIL-PRF-39010)

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1µH Unshielded Inductor 785mA 290mOhm Max Axial

To learn about the specification of ER1537-12KR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ER1537-12KR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ER1537-12KR.
We are offering ER1537-12KR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ER1537-12KR - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	ER Series (MIL-PRF-39010)
Standard Package	1
Manufacturer	API Delevan Inc.
Series	Military, MIL-PRF-39010/06, ER1537
Packaging	Cut Tape (CT)
Part Status	Active
Type	-
Material - Core	Phenolic
Inductance	1µH
Tolerance	±10%
Current Rating (Amps)	785mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	290mOhm Max
Q @ Freq	50 @ 25MHz
Frequency - Self Resonant	200MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	25MHz
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.156" Dia x 0.375" L (3.96mm x 9.53mm)
Height - Seated (Max)	-
