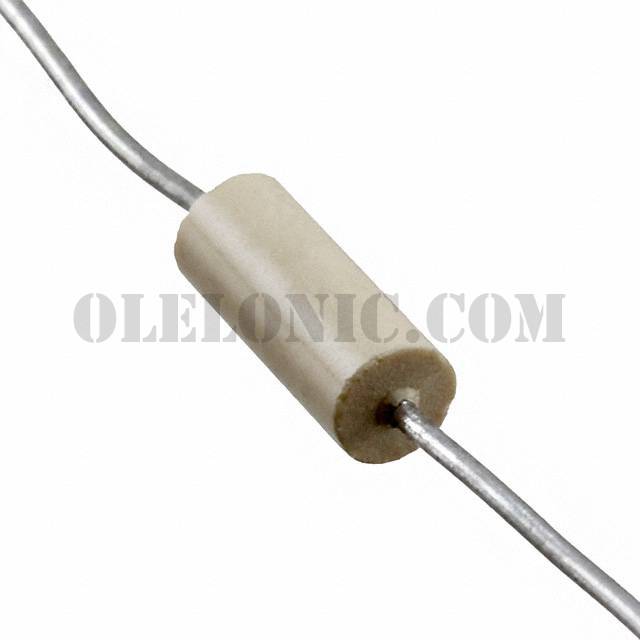

ER1025-52KR

ER1025-52KR

Part NumberER1025-52KR

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 22UH 140MA 3.3 OHM TH

DatasheetER Series (MIL-PRF-39010)

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µH Unshielded Inductor 140mA 3.3Ohm Max Axial

To learn about the specification of ER1025-52KR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ER1025-52KR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ER1025-52KR.
We are offering ER1025-52KR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ER1025-52KR - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	ER Series (MIL-PRF-39010)
Standard Package	250
Manufacturer	API Delevan Inc.
Series	Military, MIL-PRF-39010/09, ER1025
Packaging	Tape & Reel (TR)
Part Status	Active
Type	-
Material - Core	Iron
Inductance	22µH
Tolerance	±10%
Current Rating (Amps)	140mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	3.3Ohm Max
Q @ Freq	50 @ 2.5MHz
Frequency - Self Resonant	25MHz
Ratings	-
Operating Temperature	-55°C ~ 105°C
Inductance Frequency - Test	2.5MHz
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max)	-
