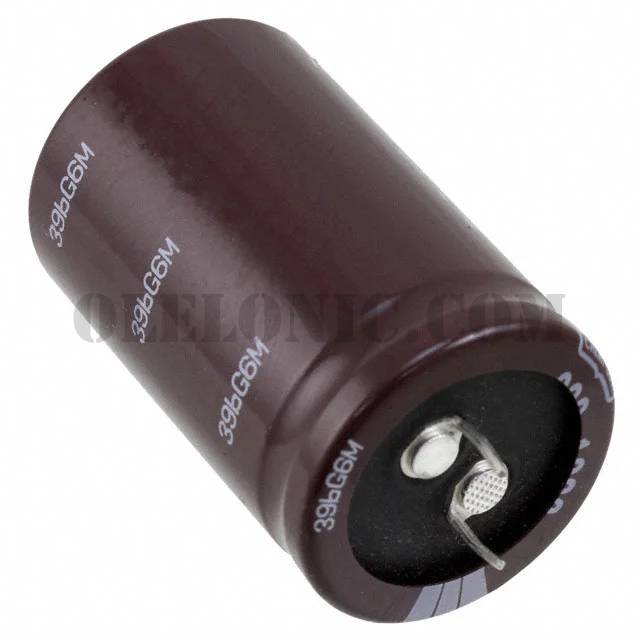

ELHS501VSN561MA60S

Part NumberELHS501VSN561MA60S

ManufacturerUnited Chemi-Con

DescriptionCAP ALUM 560UF 20% 500V SNAP-IN

DatasheetLHS Series

Package / CaseRadial, Can - Snap-In

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description560µF 500V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C

To learn about the specification of ELHS501VSN561MA60S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ELHS501VSN561MA60S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ELHS501VSN561MA60S.
We are offering ELHS501VSN561MA60S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ELHS501VSN561MA60S - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LHS Series
Standard Package	200
Manufacturer	United Chemi-Con
Series	LHS
Packaging	Bulk
Part Status	Active
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	500V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.21A @ 120Hz
Ripple Current @ High Frequency	3.1603A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	2.461" (62.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
