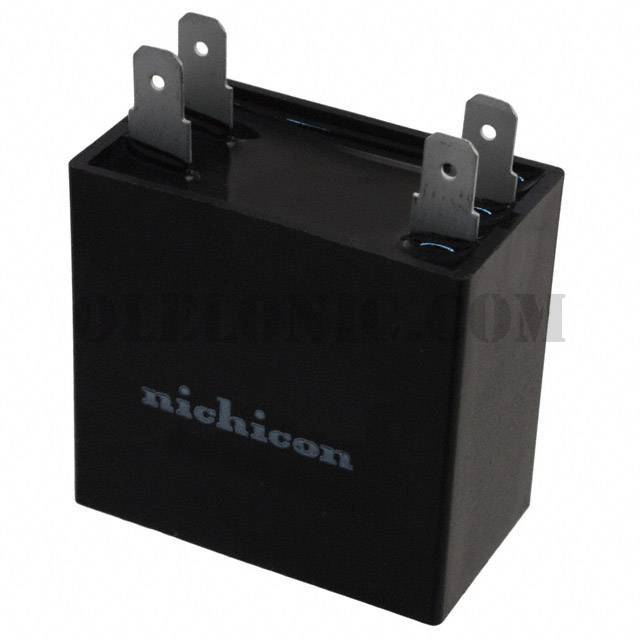

Categories	Capacitors / Film Capacitors
Datasheet	EEC Series
Standard Package	100
Manufacturer	Nichicon
Series	EEC
Packaging	Bulk
Part Status	Active
Capacitance	5µF
Tolerance	-5%, +10%
Voltage Rating - AC	400V
Voltage Rating - DC	-
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-25°C ~ 85°C
Mounting Type	Chassis Mount
Package / Case	Rectangular Box
Size / Dimension	1.457" L x 0.846" W (37.00mm x 21.50mm)
Height - Seated (Max)	1.417" (36.00mm)
Termination	Quick Connect, Disconnect
Lead Spacing	-
Applications	Motor Run
Ratings	-
Features	-

EEC2G156HQA416	Nichicon, 15µF Film Capacitor 400V Polypropylene (PP), Metallized Rectangular Box, EEC	View
EEC2G305HQA403	Nichicon, 3µF Film Capacitor 400V Polypropylene (PP), Metallized Rectangular Box, EEC	View
EEC2E206HQA415	Nichicon, 20µF Film Capacitor 250V Polypropylene (PP), Metallized Rectangular Box, EEC	View
EEC2E605HQA402	Nichicon, 6µF Film Capacitor 250V Polypropylene (PP), Metallized Rectangular Box, EEC	View
EEC2G126HQA415	Nichicon, 12µF Film Capacitor 400V Polypropylene (PP), Metallized Rectangular Box, EEC	View
EEC2E405HQA401	Nichicon, 4µF Film Capacitor 250V Polypropylene (PP), Metallized Rectangular Box, EEC	View
EEC2E156HQA407	Nichicon, 15µF Film Capacitor 250V Polypropylene (PP), Metallized Rectangular Box, EEC	View
EEC2G105HQA401	Nichicon, 1µF Film Capacitor 400V Polypropylene (PP), Metallized Rectangular Box, EEC	View
EEC2G705HQA407	Nichicon, 7µF Film Capacitor 400V Polypropylene (PP), Metallized Rectangular Box, EEC	View
EEC2E256HQA415	Nichicon, 25µF Film Capacitor 250V Polypropylene (PP), Metallized Rectangular Box, EEC	View
EEC2E506HQA431	Nichicon, 50µF Film Capacitor 250V Polypropylene (PP), Metallized Rectangular Box, EEC	View
EEC2E505HQA402	Nichicon, 5µF Film Capacitor 250V Polypropylene (PP), Metallized Rectangular Box, EEC	View

EEC2G505HQA406

Part NumberEEC2G505HQA406
