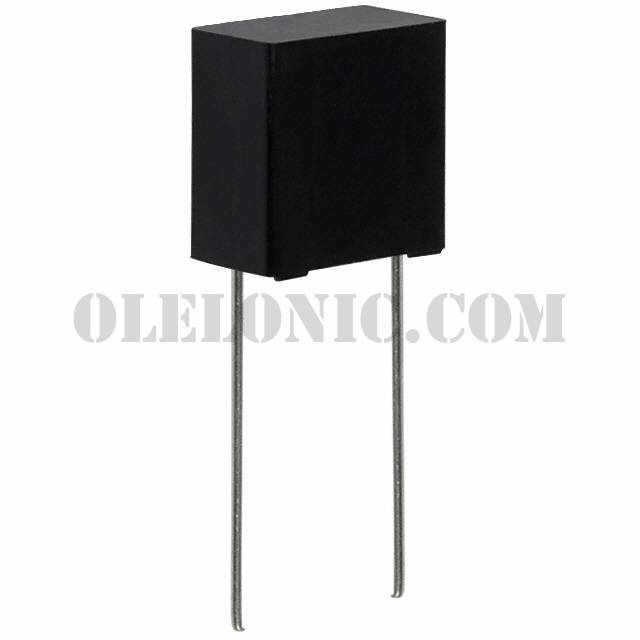

Categories	Capacitors / Film Capacitors
Datasheet	ECQ-UL Series Datasheet
Standard Package	100
Manufacturer	Panasonic Electronic Components
Series	ECQ-UL
Packaging	Bulk
Part Status	Active
Capacitance	0.33µF
Tolerance	±20%
Voltage Rating - AC	275V
Voltage Rating - DC	-
Dielectric Material	Polyester, Metallized
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.689" L x 0.374" W (17.50mm x 9.50mm)
Height - Seated (Max)	0.709" (18.00mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	EMI, RFI Suppression
Ratings	X2
Features	-

ECQ-U2A272ML	Panasonic Electronic Components, 2700pF Film Capacitor 275V Polyester, Metallized Radial, ECQ-UL	View
ECQ-U2A823ML	Panasonic Electronic Components, 0.082µF Film Capacitor 275V Polyester, Metallized Radial, ECQ-UL	View
ECQ-U2A274ML	Panasonic Electronic Components, 0.27µF Film Capacitor 275V Polyester, Metallized Radial, ECQ-UL	View
ECQ-U2A472ML	Panasonic Electronic Components, 4700pF Film Capacitor 275V Polyester, Metallized Radial, ECQ-UL	View
ECQ-U2A103ML	Panasonic Electronic Components, 10000pF Film Capacitor 275V Polyester, Metallized Radial, ECQ-UL	View
ECQ-U2A392ML	Panasonic Electronic Components, 3900pF Film Capacitor 275V Polyester, Metallized Radial, ECQ-UL	View
ECQ-U2A684ML	Panasonic Electronic Components, 0.68µF Film Capacitor 275V Polyester, Metallized Radial, ECQ-UL	View
ECQ-U2A124ML	Panasonic Electronic Components, 0.12µF Film Capacitor 275V Polyester, Metallized Radial, ECQ-UL	View
ECQ-U2A332ML	Panasonic Electronic Components, 3300pF Film Capacitor 275V Polyester, Metallized Radial, ECQ-UL	View
ECQ-U2A153ML	Panasonic Electronic Components, 0.015µF Film Capacitor 275V Polyester, Metallized Radial, ECQ-UL	View
ECQ-U2A563ML	Panasonic Electronic Components, 0.056µF Film Capacitor 275V Polyester, Metallized Radial, ECQ-UL	View
ECQ-U2A822ML	Panasonic Electronic Components, 8200pF Film Capacitor 275V Polyester, Metallized Radial, ECQ-UL	View

ECQ-U2A334ML

Part NumberECQ-U2A334ML
