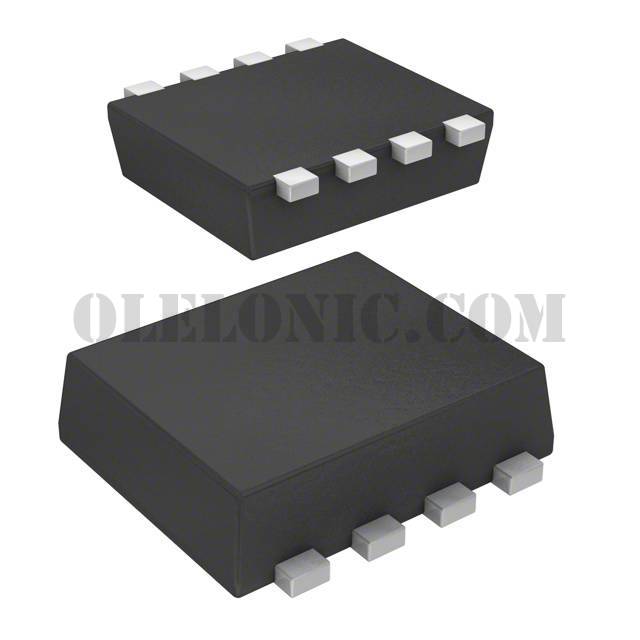

ECH8420-TL-H

ECH8420-TL-H

Part NumberECH8420-TL-H

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 20V 14A ECH8

DatasheetECH8420

Package / Case8-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 14A (Ta) 1.6W (Ta) Surface Mount 8-ECH

To learn about the specification of ECH8420-TL-H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ECH8420-TL-H with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ECH8420-TL-H.
We are offering ECH8420-TL-H for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ECH8420-TL-H - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	ECH8420
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	14A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	6.8mOhm @ 7A, 4.5V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	29nC @ 4.5V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	2430pF @ 10V
FET Feature	-
Power Dissipation (Max)	1.6W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-ECH
Package / Case	8-SMD, Flat Lead
