ECH8102-TL-H

ECH8102-TL-H

Part NumberECH8102-TL-H

ManufacturerON Semiconductor

DescriptionTRANS PNP 30V 12A ECH8

DatasheetECH8102

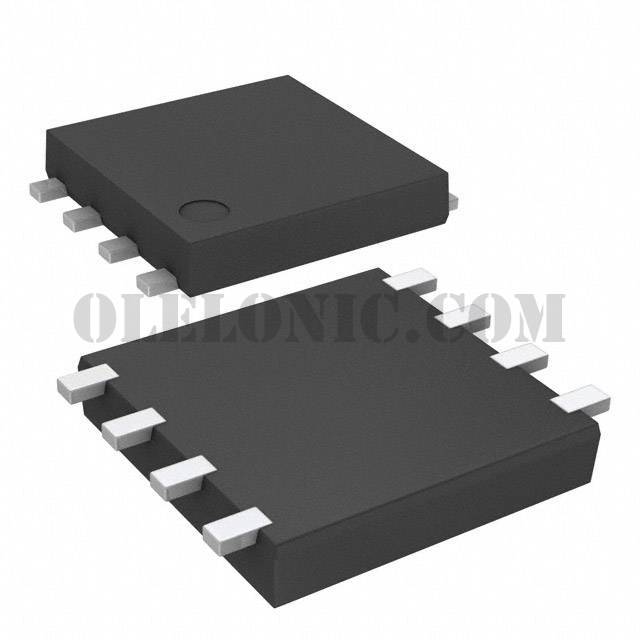

Package / Case8-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 30V 12A 140MHz 1.6W Surface Mount 8-ECH

To learn about the specification of ECH8102-TL-H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ECH8102-TL-H with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ECH8102-TL-H.
We are offering ECH8102-TL-H for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ECH8102-TL-H - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	ECH8102
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	12A
Voltage - Collector Emitter Breakdown (Max)	30V
Vce Saturation (Max) @ Ib, Ic	135mV @ 300mA, 6A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 500mA, 2V
Power - Max	1.6W
Frequency - Transition	140MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SMD, Flat Lead
Supplier Device Package	8-ECH
