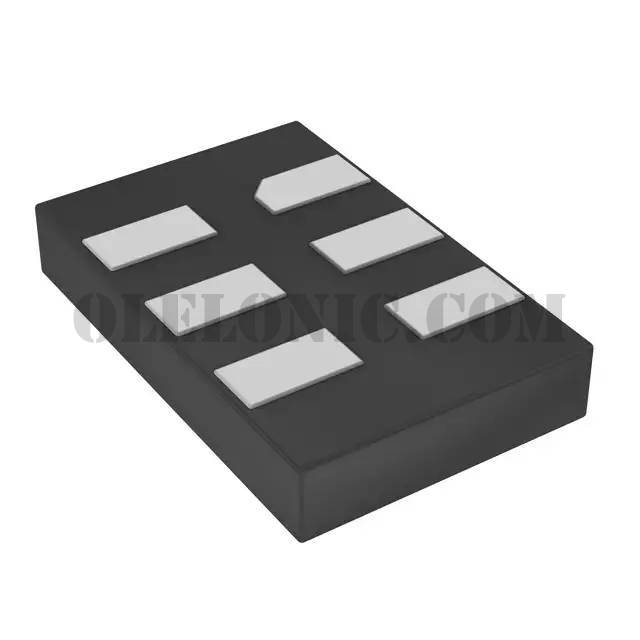

DSC1123BI5-156.2500T

Part NumberDSC1123BI5-156.2500T

ManufacturerMicrochip Technology

DescriptionMEMS OSC XO 156.2500MHZ LVDS SMD

DatasheetDSC1103,23 Datasheet

Package / Case6-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description156.25MHz XO (Standard) LVDS Oscillator 2.25V ~ 3.6V Enable/Disable 6-SMD, No Lead

To learn about the specification of DSC1123BI5-156.2500T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DSC1123BI5-156.2500T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DSC1123BI5-156.2500T.
We are offering DSC1123BI5-156.2500T for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DSC1123BI5-156.2500T - Product Attributes

Categories	Crystals, Oscillators, Resonators / Oscillators
Datasheet	DSC1103,23 Datasheet
Standard Package	1
Manufacturer	Microchip Technology
Series	DSC1123
Packaging	Cut Tape (CT)
Part Status	Active
Base Resonator	MEMS
Type	XO (Standard)
Frequency	156.25MHz
Function	Enable/Disable
Output	LVDS
Voltage - Supply	2.25V ~ 3.6V
Frequency Stability	±10ppm
Absolute Pull Range (APR)	-
Operating Temperature	-40°C ~ 85°C
Spread Spectrum Bandwidth	-
Current - Supply (Max)	32mA
Ratings	-
Mounting Type	Surface Mount
Package / Case	6-SMD, No Lead
Size / Dimension	0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max)	0.035" (0.90mm)
Current - Supply (Disable) (Max)	22mA
