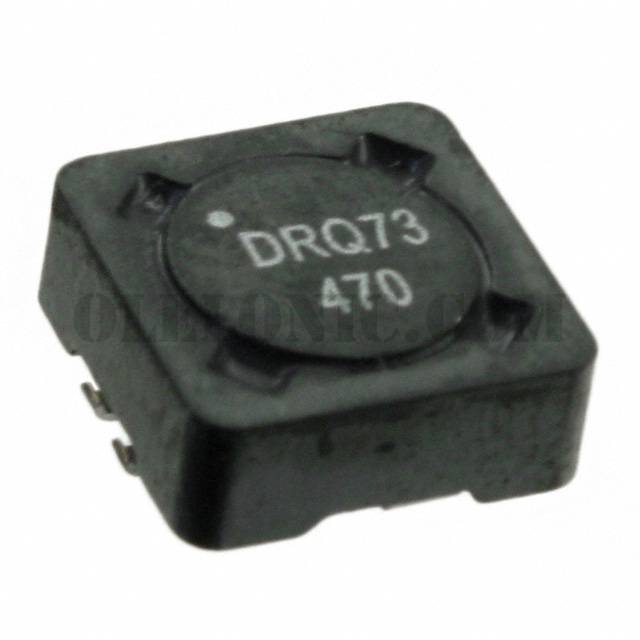

DRQ73-470-R

Part NumberDRQ73-470-R

ManufacturerEaton - Electronics Division

DescriptionINDUCT ARRAY 2 COIL 48.62UH SMD

DatasheetDRQ Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 194.5µH Inductance - Connected in Series 48.62µH Inductance - Connected in Parallel 241mOhm DC Resistance (DCR) - Parallel 1.08A Nonstandard

To learn about the specification of DRQ73-470-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DRQ73-470-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DRQ73-470-R.
We are offering DRQ73-470-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DRQ73-470-R - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	DRQ Series
Standard Package	1
Manufacturer	Eaton - Electronics Division
Series	DRQ
Packaging	Cut Tape (CT)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	48.62µH
Inductance - Connected In Series	194.5µH
Tolerance	±20%
Current Rating - Parallel	1.08A
Current Rating - Series	542mA
Current Saturation - Parallel	1.14A
Current Saturation - Series	570mA
DC Resistance (DCR) - Parallel	241mOhm
DC Resistance (DCR) - Series	965mOhm
Shielding	Shielded
Ratings	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.299" L x 0.299" W (7.60mm x 7.60mm)
Height	0.140" (3.55mm)
