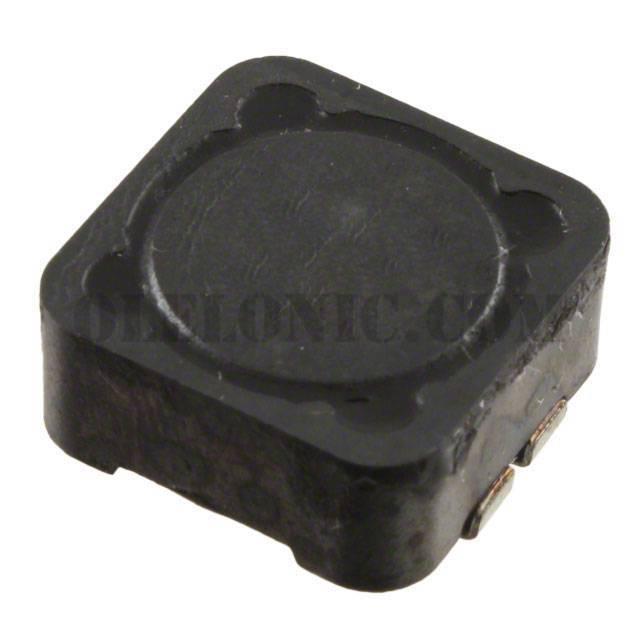

DRQ125-150-R


DRQ125-150-R

Part NumberDRQ125-150-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

DRQ125-150-R - Product Attributes

Categories Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet
Standard Package1
ManufacturerEaton - Electronics Division
SeriesDRQ
PackagingCut Tape (CT)
Part StatusActive
Number of Coils2
Inductance - Connected In Parallel15.35µH
Inductance - Connected In Series61.4µH
Tolerance±20%
Current Rating - Parallel4.27A
Current Rating - Series2.13A
Current Saturation - Parallel5.69A
Current Saturation - Series2.85A
DC Resistance (DCR) - Parallel29.8mOhm
DC Resistance (DCR) - Series120mOhm
ShieldingShielded
Ratings-
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.492" L x 0.492" W (12.50mm x 12.50mm)
Height0.236" (6.00mm)
