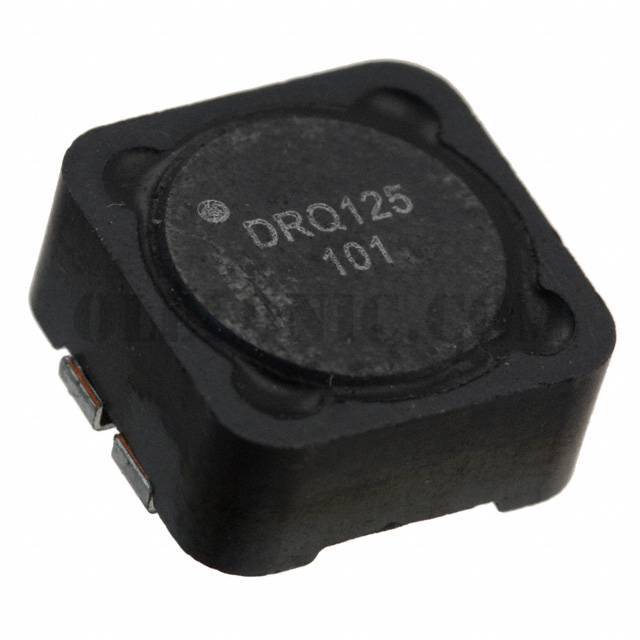

DRQ125-101-R

Part NumberDRQ125-101-R

ManufacturerEaton - Electronics Division

DescriptionINDUCT ARRAY 2 COIL 102.7UH SMD

DatasheetDRQ Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 410.8µH Inductance - Connected in Series 102.7µH Inductance - Connected in Parallel 170mOhm DC Resistance (DCR) - Parallel 1.78A Nonstandard

To learn about the specification of DRQ125-101-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DRQ125-101-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DRQ125-101-R.
We are offering DRQ125-101-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DRQ125-101-R - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	DRQ Series
Standard Package	1
Manufacturer	Eaton - Electronics Division
Series	DRQ
Packaging	Cut Tape (CT)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	102.7µH
Inductance - Connected In Series	410.8µH
Tolerance	±20%
Current Rating - Parallel	1.78A
Current Rating - Series	892mA
Current Saturation - Parallel	2.2A
Current Saturation - Series	1.1A
DC Resistance (DCR) - Parallel	170mOhm
DC Resistance (DCR) - Series	682mOhm
Shielding	Shielded
Ratings	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height	0.236" (6.00mm)
