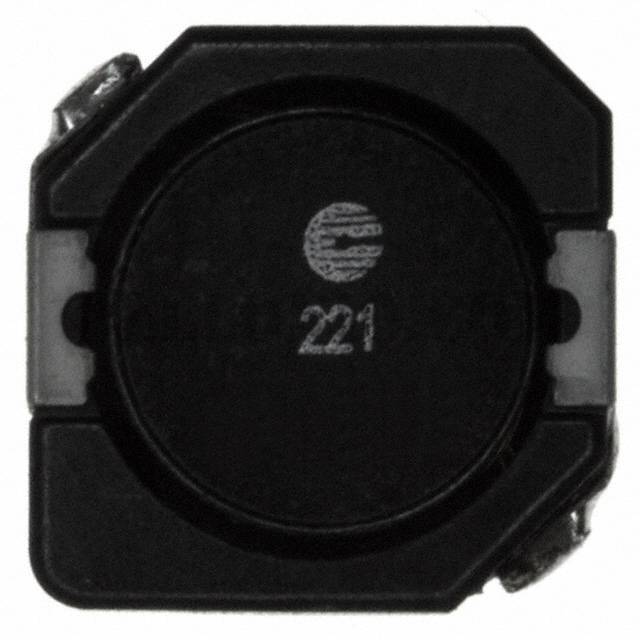

DR1040-221-R


DR1040-221-R

Part NumberDR1040-221-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

DR1040-221-R - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerEaton - Electronics Division
SeriesDR1040
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance220µH
Tolerance±30%
Current Rating (Amps)700mA
Current - Saturation920mA
ShieldingShielded
DC Resistance (DCR)640mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max)0.157" (4.00mm)
