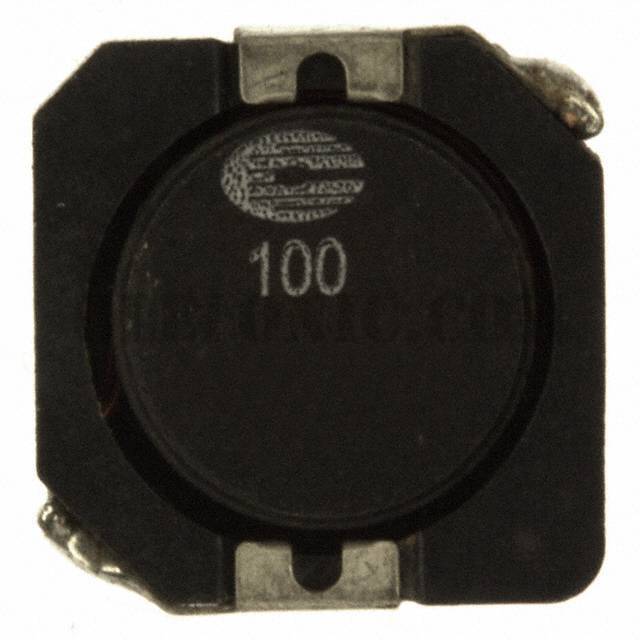

DR1030-100-R

DR1030-100-R

Part NumberDR1030-100-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 10UH 2.8A 48 MOHM SMD

DatasheetDR1030 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10µH Shielded Wirewound Inductor 2.8A 48mOhm Max Nonstandard

To learn about the specification of DR1030-100-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DR1030-100-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DR1030-100-R.
We are offering DR1030-100-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DR1030-100-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	DR1030 Series
Standard Package	1000
Manufacturer	Eaton - Electronics Division
Series	DR1030
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	10µH
Tolerance	±30%
Current Rating (Amps)	2.8A
Current - Saturation	3.18A
Shielding	Shielded
DC Resistance (DCR)	48mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max)	0.118" (3.00mm)
