DMT3009LDT-7

Part NumberDMT3009LDT-7

ManufacturerDiodes Incorporated

DescriptionMOSFET 2N-CH 30V 30A V-DFN3030-8

DatasheetDMT3009LDT

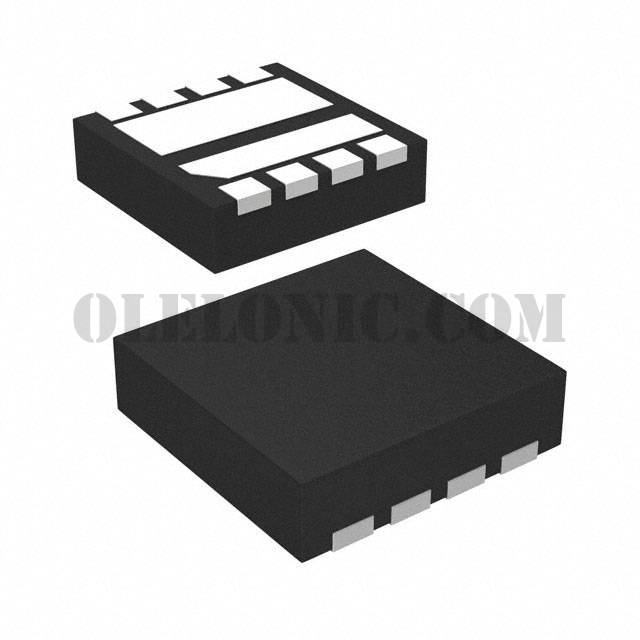

Package / Case8-VDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Asymmetrical 30V 30A 1.2W Surface Mount V-DFN3030-8 (Type K)

To learn about the specification of DMT3009LDT-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMT3009LDT-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMT3009LDT-7.
We are offering DMT3009LDT-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMT3009LDT-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMT3009LDT
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual) Asymmetrical
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	30A
Rds On (Max) @ Id, Vgs	11.1mOhm @ 14.4A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	20nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds	1500pF @ 15V
Power - Max	1.2W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-VDFN Exposed Pad
Supplier Device Package	V-DFN3030-8 (Type K)
