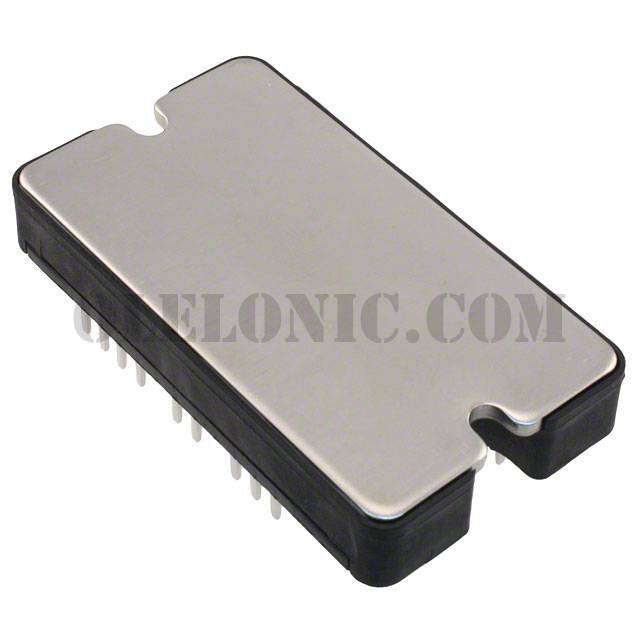

APTM50HM65FT3G

Part NumberAPTM50HM65FT3G

ManufacturerMicrosemi Corporation

DescriptionMOSFET 4N-CH 500V 51A SP3

DatasheetAPTM50HM65FT3G

Package / CaseSP3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 4 N-Channel (H-Bridge) 500V 51A 390W Chassis Mount SP3

To learn about the specification of APTM50HM65FT3G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM50HM65FT3G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM50HM65FT3G.
We are offering APTM50HM65FT3G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM50HM65FT3G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	APTM50HM65FT3G
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
FET Type	4 N-Channel (H-Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	51A
Rds On (Max) @ Id, Vgs	78mOhm @ 25.5A, 10V
Vgs(th) (Max) @ Id	5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs	140nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	7000pF @ 25V
Power - Max	390W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP3
Supplier Device Package	SP3
