DMPH4015SK3Q-13

DMPH4015SK3Q-13

Part NumberDMPH4015SK3Q-13

ManufacturerDiodes Incorporated

DescriptionMOSFET PCH 40V 14A TO252

DatasheetDMPH4015SK3

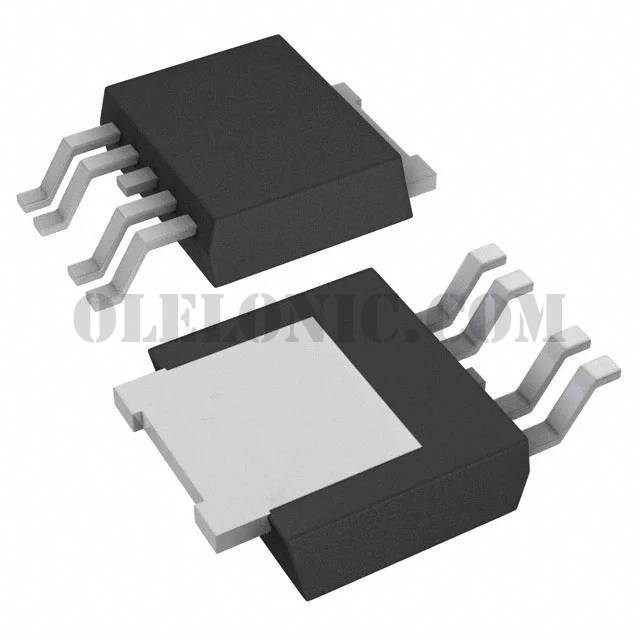

Package / CaseTO-252-5, DPak (4 Leads + Tab), TO-252AD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 40V 14A (Ta), 45A (Tc) 1.7W (Ta) Surface Mount TO-252-4L

To learn about the specification of DMPH4015SK3Q-13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMPH4015SK3Q-13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMPH4015SK3Q-13.
We are offering DMPH4015SK3Q-13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMPH4015SK3Q-13 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMPH4015SK3
Standard Package	2500
Manufacturer	Diodes Incorporated
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	14A (Ta), 45A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	11mOhm @ 9.8A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	91nC @ 10V
Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	4234pF @ 20V
FET Feature	-
Power Dissipation (Max)	1.7W (Ta)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252-4L
Package / Case	TO-252-5, DPak (4 Leads + Tab), TO-252AD
