DMP21D0UFB4-7B

DMP21D0UFB4-7B

Part NumberDMP21D0UFB4-7B

ManufacturerDiodes Incorporated

DescriptionMOSFET P-CH 20V 770MA 3DFN

DatasheetDMP21D0UFB4

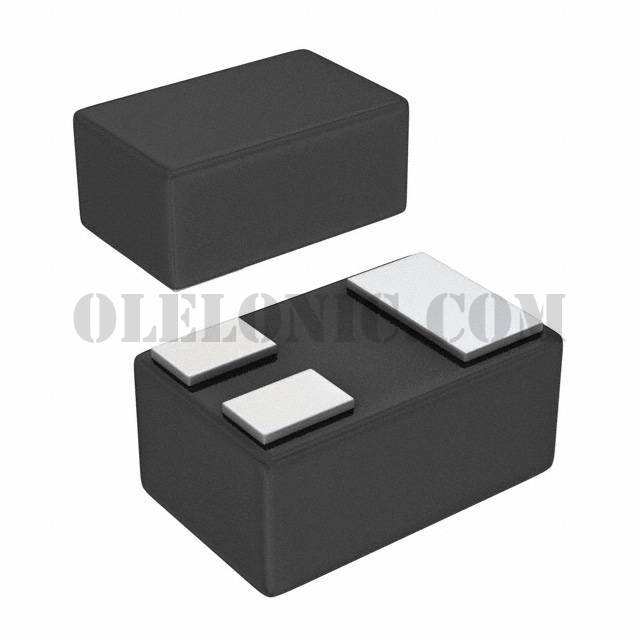

Package / Case3-XFDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 770mA (Ta) 430mW (Ta) Surface Mount X2-DFN1006-3

To learn about the specification of DMP21D0UFB4-7B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMP21D0UFB4-7B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMP21D0UFB4-7B.
We are offering DMP21D0UFB4-7B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMP21D0UFB4-7B - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMP21D0UFB4
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	770mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	495mOhm @ 400mA, 4.5V
Vgs(th) (Max) @ Id	700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.54nC @ 8V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	80pF @ 10V
FET Feature	-
Power Dissipation (Max)	430mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	X2-DFN1006-3
Package / Case	3-XFDFN
