DMP3056LSS-13

DMP3056LSS-13

Part NumberDMP3056LSS-13

ManufacturerDiodes Incorporated

DescriptionMOSFET P-CH 30V 7.1A 8-SOIC

DatasheetDMP3056LSS

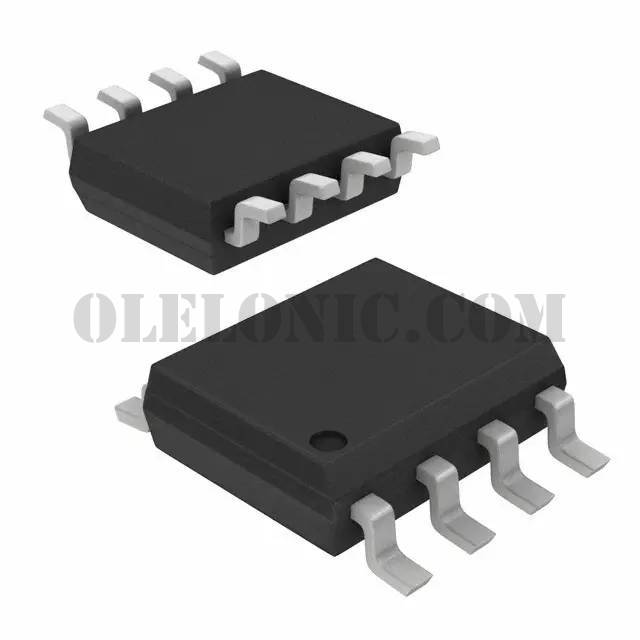

Package / Case8-SOIC (0.154", 3.90mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 30V 7.1A (Ta) 2.5W (Ta) Surface Mount 8-SOP

To learn about the specification of DMP3056LSS-13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMP3056LSS-13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMP3056LSS-13.
We are offering DMP3056LSS-13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMP3056LSS-13 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMP3056LSS
Standard Package	2500
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	7.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	45mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.8nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	722pF @ 25V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOP
Package / Case	8-SOIC (0.154", 3.90mm Width)
