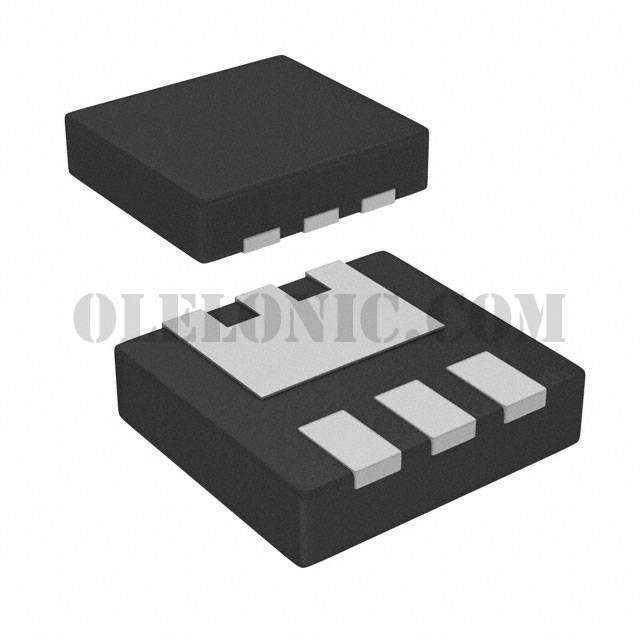

DMP2018LFK-7

DMP2018LFK-7

Part NumberDMP2018LFK-7

ManufacturerDiodes Incorporated

DescriptionMOSFET P-CH 20V 9.2A 6-DFN

DatasheetDMP2018LFK

Package / Case6-PowerUDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 9.2A (Ta) 1W (Ta) Surface Mount U-DFN2523-6

To learn about the specification of DMP2018LFK-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMP2018LFK-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMP2018LFK-7.
We are offering DMP2018LFK-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMP2018LFK-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMP2018LFK
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	9.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	16mOhm @ 3.6A, 4.5V
Vgs(th) (Max) @ Id	1.2V @ 200µA
Gate Charge (Qg) (Max) @ Vgs	113nC @ 10V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	4748pF @ 10V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN2523-6
Package / Case	6-PowerUDFN
